Remove (For Vehicles with 16V Batteries)

  1. Open the LH front door and lower all the windows.
  2. Remove the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .

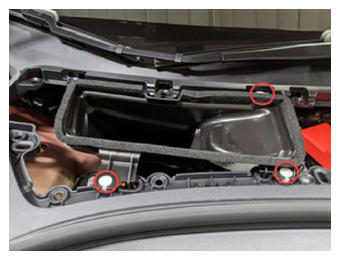

  3. Remove the clips that attach the cabin intake upper duct assembly to the vehicle, and then remove the intake duct from the vehicle.
    NOTE: Older vehicles may be equipped with 4 clips.
    G14743679Courtesy of TESLA, INC.
  4. Remove the 12V/LV battery. See 12V/LV BATTERY (REMOVE AND REPLACE) .

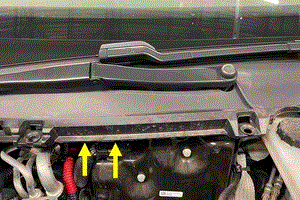

  5. Release the cowl screen from the support bracket.
    G00621743Courtesy of TESLA, INC.

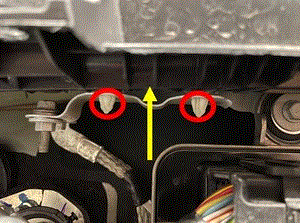

    G00621744Courtesy of TESLA, INC.
  6. Release the cowl screen using the inflatable air bag.

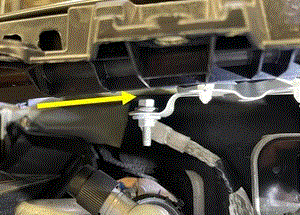

    G00621745Courtesy of TESLA, INC.

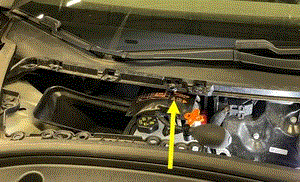

    G00621746Courtesy of TESLA, INC.

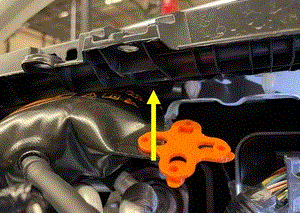

    G00621747Courtesy of TESLA, INC.
  7. Remove the bolt that attaches the ground cable to the front controller.

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    • Flex head ratchet/flex head torque wrench
    • Ratchet/torque wrench

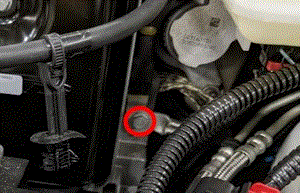

    G00621748Courtesy of TESLA, INC.
  8. Disconnect the thermal sub-harness from the front body controller module.
    NOTE: Press the locking tab, and then rotate to release.

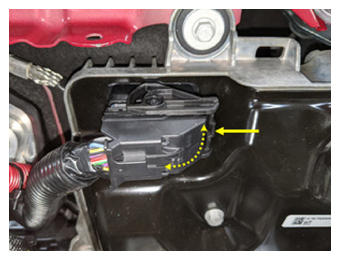

    G14743717Courtesy of TESLA, INC.
  9. Remove the bolts (x2) that attach the front body controller module shield assembly to the front body controller, and then remove the shield assembly from the vehicle.

    Tip: Use of the following tool(s) is recommended:

    • Flex head ratchet/flex head torque wrench
    • 4 in extension
    • 10 mm socket
    • Ratchet/torque wrench

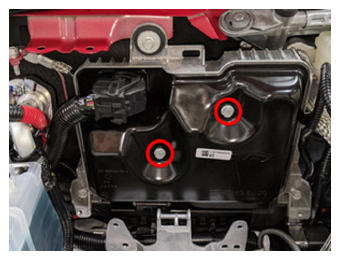

    G14743718Courtesy of TESLA, INC.

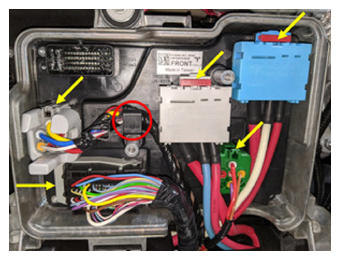

  10. Disconnect the front body controller harness connectors (x5), and then release the harness guide.
    G14743719Courtesy of TESLA, INC.
  11. Remove the bolts (x3) that attach the front body controller module to the vehicle.

    Tip: Use of the following tool(s) is recommended:

    • Flex head ratchet/flex head torque wrench
    • 10 in extension
    • 10 mm socket
    • Ratchet/torque wrench

    G14752327Courtesy of TESLA, INC.

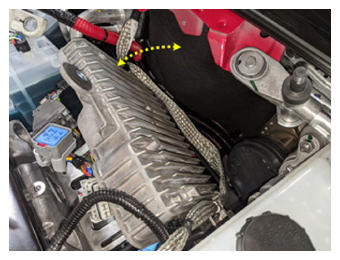

  12. Tilt the front body controller module forward for access to the ground cable, then remove the edge clip.
    G14743721Courtesy of TESLA, INC.

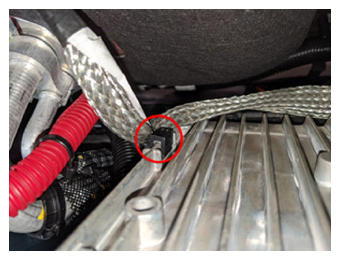

    G14743724Courtesy of TESLA, INC.

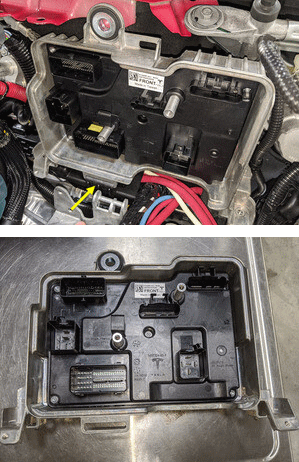

  13. Release the harness guide, and then remove the front body controller module from the vehicle.
    G14752332Courtesy of TESLA, INC.
