Install (For Vehicles with 16V Batteries)

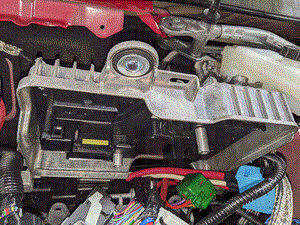

  1. Position the front body controller module into the vehicle for installation.
    G00621749Courtesy of TESLA, INC.

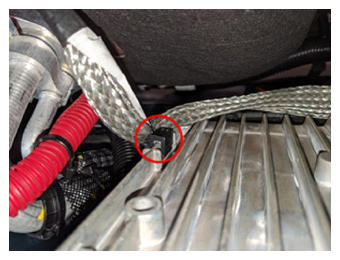

  2. Secure the edge clip to install the ground cable to the backside of front controller.
    G14743730Courtesy of TESLA, INC.
  3. Install the harness guide, and then tilt the front controller backward for installation.
    G14743726Courtesy of TESLA, INC.
    G14743721Courtesy of TESLA, INC.
  4. Install the bolts (x3) that attach the front body controller module to the vehicle.

    10 Nm (7.4 lbs-ft)

    Tip: Use of the following tool(s) is recommended:

    • Flex head ratchet/flex head torque wrench
    • 10 in extension
    • 10 mm socket
    • Ratchet/torque wrench

    G14752327Courtesy of TESLA, INC.

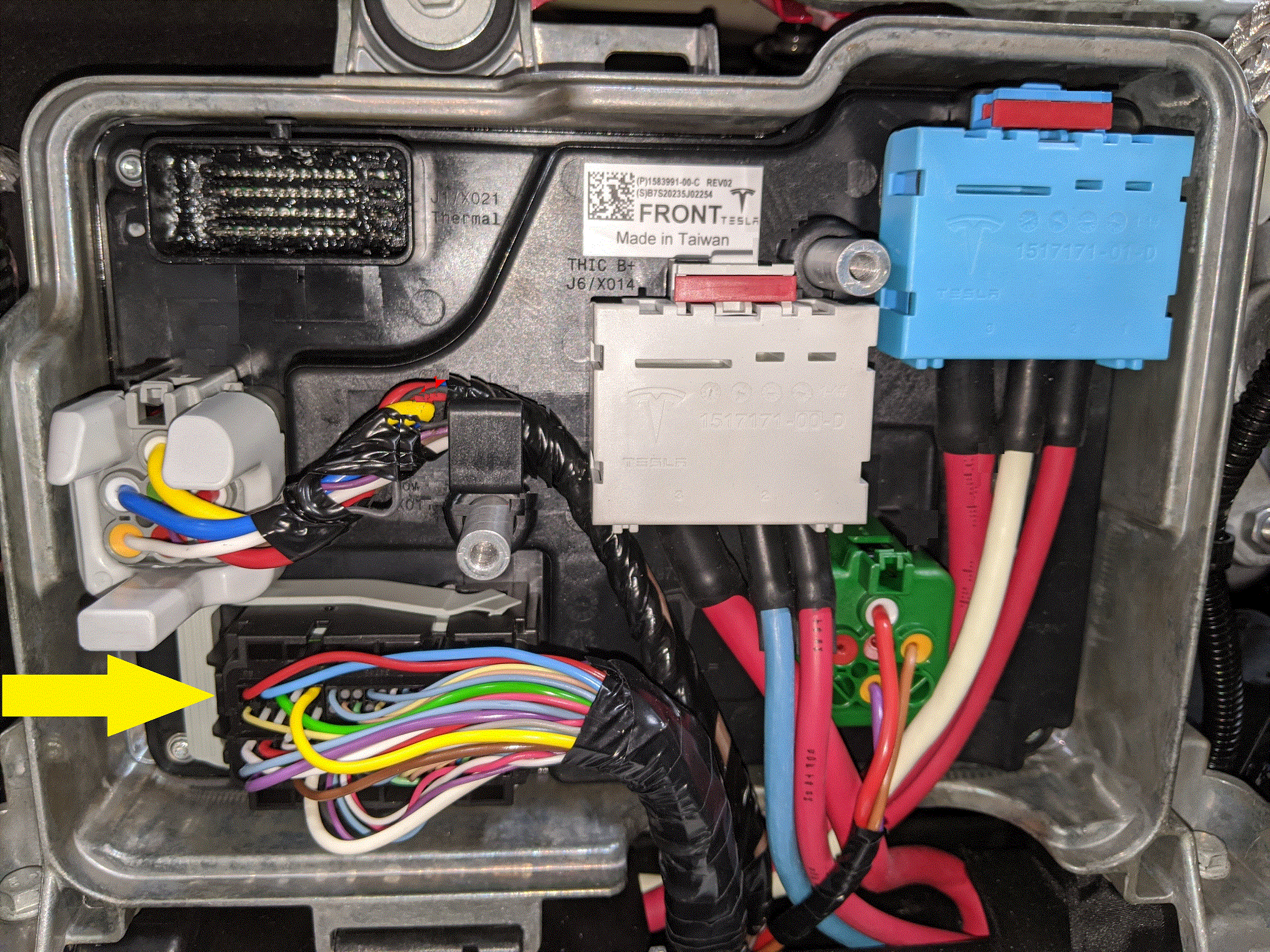

  5. Secure the harness guide, and then connect the front body controller module harness connectors (x4).
    G00621751Courtesy of TESLA, INC.
  6. With the X010 connector disconnected, move the gray locking lever fully into the unlocked position, use the black connector body to fully seat the X010 connector into the front body controller module, and then secure the locking lever.
    CAUTION: Do not try to seat the connector with the locking lever closed.

    Tip: Apply alternating firm pressure on the top and bottom of the black connector housing to fully seat the connector before securing the connector lock.

    NOTE: The locking lever should easily click into position when the connector is properly seated.
    G00621751Courtesy of TESLA, INC.
  7. Install the bolts (x2) that attach the front body controller module shield assembly to the front body controller.

    8.5 Nm (6.3 lbs-ft)

    Tip: Use of the following tool(s) is recommended:

    • Flex head ratchet/flex head torque wrench
    • 4 in extension
    • 10 mm socket
    • Ratchet/torque wrench

    G14743718Courtesy of TESLA, INC.
  8. Connect the thermal sub-harness to the front body controller module.
    NOTE: Press the locking tab, and then rotate to release.
    G14743717Courtesy of TESLA, INC.

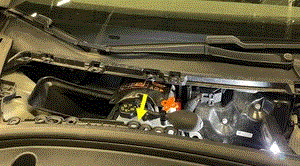

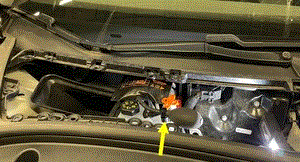

  9. Remove the inflatable air bag.
    NOTE: Deflate the inflatable air bag prior removal.
    G00621752Courtesy of TESLA, INC.
    G00621753Courtesy of TESLA, INC.

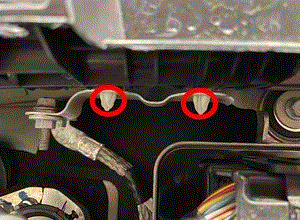

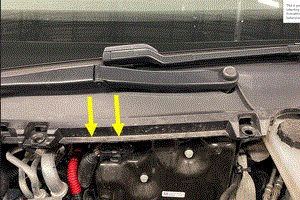

  10. Secure the push clips (x2) to install the cowl screen assembly.
    G00621754Courtesy of TESLA, INC.
    G00621755Courtesy of TESLA, INC.
  11. Install the bolt that attaches the ground cable to the front controller.

    8.5 Nm (6.3 lbs-ft)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    • Flex head ratchet/flex head torque wrench
    • Ratchet/torque wrench

    G00621748Courtesy of TESLA, INC.
  12. Install the 12V/LV battery. See 12V/LV BATTERY (REMOVE AND REPLACE) .
    NOTE: Connect a LV maintainer after installing the LV battery cable stand off.
  13. Reinstall the vehicle software. See SOFTWARE REINSTALL - TOOLBOX .
  14. Remove the LV battery maintainer.
  15. Finish the remaining steps of installing the 12V/LV battery. See 12V/LV BATTERY (REMOVE AND REPLACE) .
    NOTE: No need to reinstall the firmware again.
  16. Position the cabin intake upper duct assembly into the vehicle, and then install the clips that attach the intake duct to the vehicle.
    NOTE: Older vehicles may be equipped with 4 clips.
    G14743679Courtesy of TESLA, INC.
  17. Install the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
  18. Make sure the vehicle firmware is version 2021.36 or above. Update the vehicle software if necessary.
  19. Locally connect a laptop with Toolbox 3 to the vehicle.
  20. In Toolbox, click the Dashboard  tab, and search for "VCFRONT Replacement - 2022 Q4 Campaign", select VCFRONT can (self-test)  , click Run  , and then allow the routine to complete.
  21. Select Front Vehicle Controller Lockout Circuit Connection  , click Run  , and then allow the routine to complete.
  22. Select Coolant Pump Identification  , click Run  , and then allow the routine to complete.
  23. In Toolbox, click the Actions  tab, and search for "Thermal System Performance Test", select Thermal System Performance Test  , click Run  , and then allow the routine to complete.
  24. Search for "Post VCFRONT Replacement Headlamp Calibration", select Post VCFRONT Replacement Headlamp Calibration  , click Run  , and then allow the routine to complete.
  25. Disconnect Toolbox and remove the laptop from the vehicle.
  26. Raise all the windows and close the LH front door.
