Connector End View - X675 [10/21/2016 - 08/21/2017]

Location:

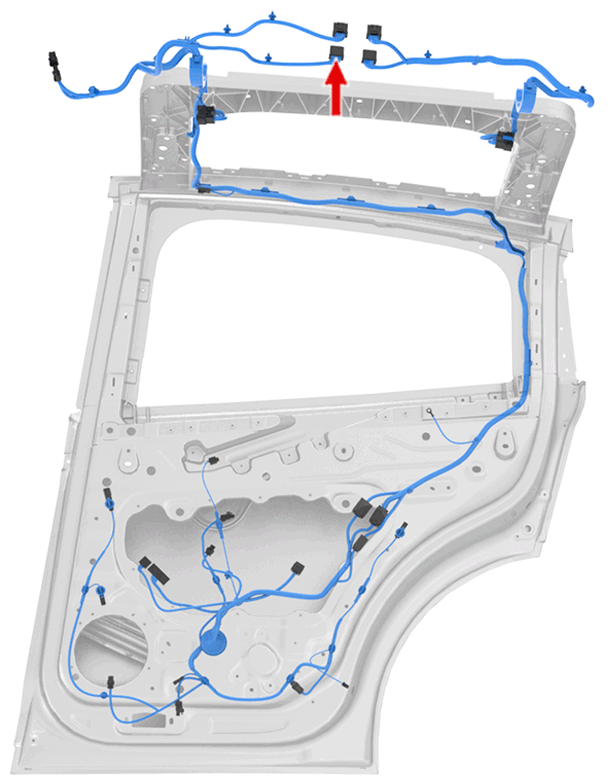

Fig 1: Connector Component Location - X675 [10/21/2016 - 08/21/2017]
G15293603Courtesy of TESLA, INC.

Connector Detail: molex_34969-0140

Gender: UNSPEC

Color: BK

Fig 2: Connector End View - X675 [10/21/2016 - 08/21/2017]
G15293604Courtesy of TESLA, INC.
Cav Col Gauge
5 SI 0.35
6 BK 0.35
7 RD 0.35
8 BU 0.35
10 GY 0.35
11 RD 2
12 BU 2
14 SI 0.35
