Connector End View - X420 [10/21/2016 - 08/21/2017]

Location:

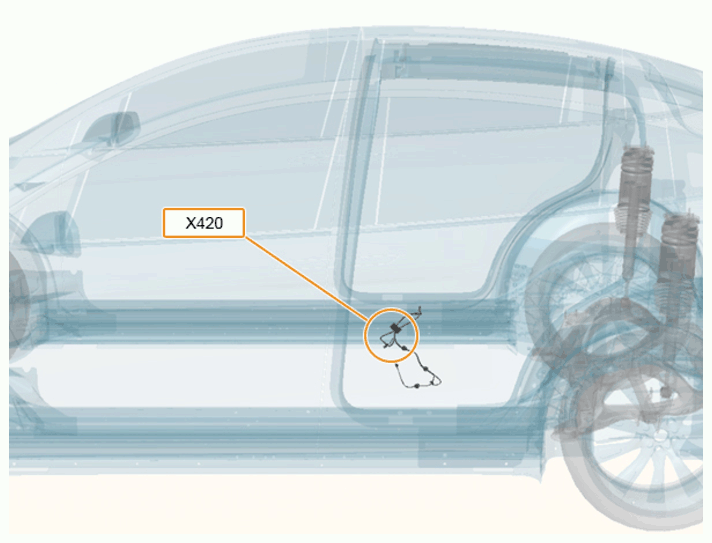

Fig 1: Connector Component Location - X420 [10/21/2016 - 08/21/2017]
G15293393Courtesy of TESLA, INC.

Connector Detail: sumitomo_6098-4756

Gender: REC-STD

Color: WH

Fig 2: Connector End View - X420 [10/21/2016 - 08/21/2017]
G15293394Courtesy of TESLA, INC.
Cav Col Gauge
1 VT/WH 0.35
2 VT 0.35
3 BN/WH 0.35
5 WH 0.35
6 VT 0.35
13 GY 0.35
14 BK/VT 0.35
16 BK/WH 0.35
22 BU 0.35
23 BN 0.35
25 RD 0.35
26 GY 0.35
