Connector End View - X974F [10/21/2016 - 08/21/2017]

Location:

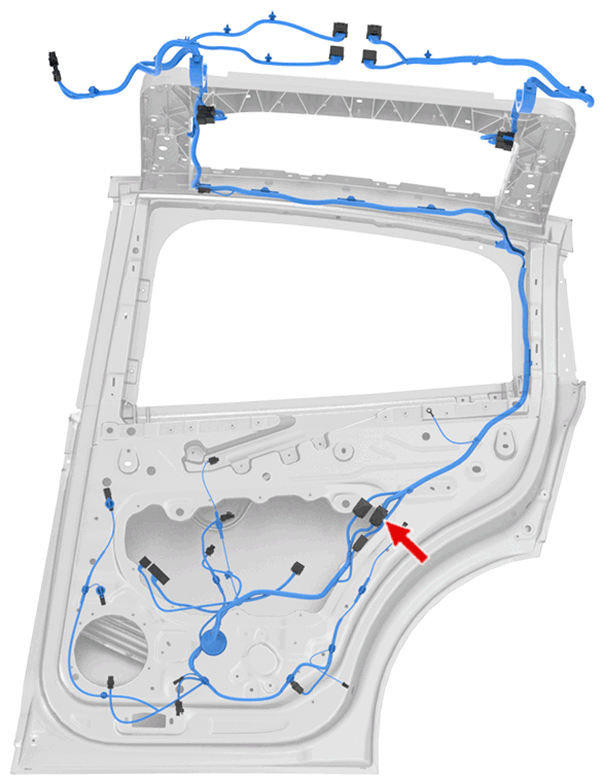

Fig 1: Connector Component Location - X974F [10/21/2016 - 08/21/2017]
G15294002Courtesy of TESLA, INC.

Connector Detail: sumitomo_6098-3926

Gender:

Color: BK

Fig 2: Connector End View - X974F [10/21/2016 - 08/21/2017]
G15294003Courtesy of TESLA, INC.
Cav Col Gauge
1 GN 0.35
2 GN 0.35
3 BK/WH 0.35
4 BK/WH 0.35
8 BN 0.5
9 BN 0.5
10 BU 0.5
11 BU 0.5
13 GY 0.35
15 GY 0.35
16 VT 0.35
17 VT 0.35
20 GY/WH 0.35
22 GY/WH 0.35
