Backlight Glass - Remove And Install: Remove

WARNING: This page is about a different car, the 2024 Tesla Model X, 2023 Tesla Model X, 2022 Tesla Model X, and 2021 Tesla Model X. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the lower liftgate trim. See Trim - Liftgate - Lower (Remove and Replace) .
  2. Remove the liftgate speaker grille. See Grille - Speaker - Liftgate (Remove and Replace) .
  3. Remove the liftgate upper trim. See Trim - Upper - Liftgate (Remove and Replace) .
  4. Remove the RH active spoiler catch basin cover. See Cover - Catch Basin - Active Spoiler - LH (Remove and Replace) .

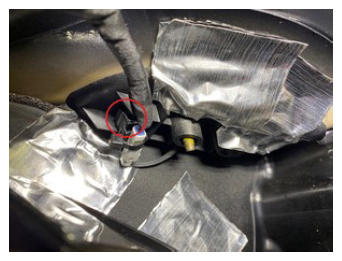

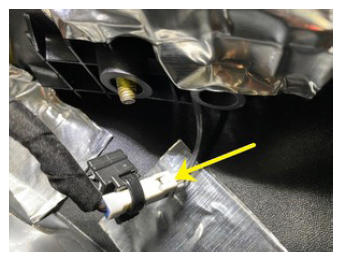

  5. Release the clip, and then disconnect the CHMSL electrical connector.
    NOTE: Release the clip from the liftgate assembly.
    G15390080Courtesy of TESLA, INC.
    G15390081Courtesy of TESLA, INC.
  6. Remove the LH active spoiler catch basin cover. See Cover - Catch Basin - Active Spoiler - LH (Remove and Replace) .

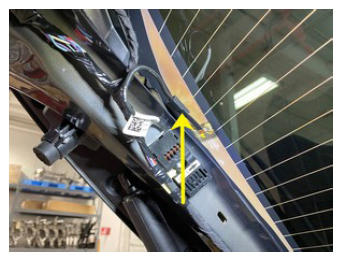

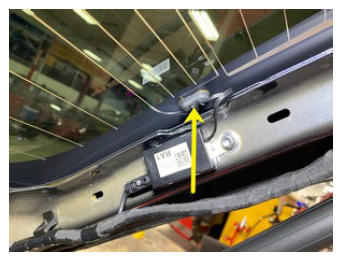

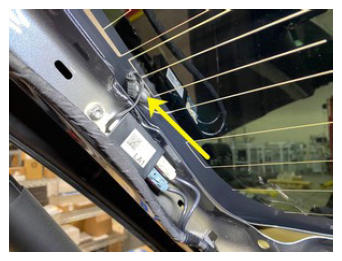

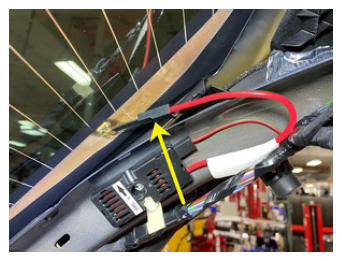

  7. Disconnect the defroster grid and antenna electrical connectors (x4) located on the LH and RH side of the backlight glass.
    G15390082Courtesy of TESLA, INC.
    G15390083Courtesy of TESLA, INC.
    G15390084Courtesy of TESLA, INC.
    G15390085Courtesy of TESLA, INC.
  8. Close the liftgate.

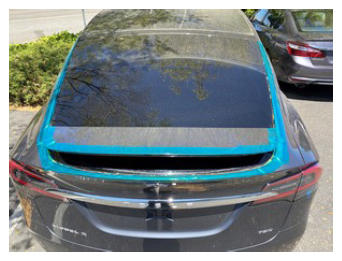

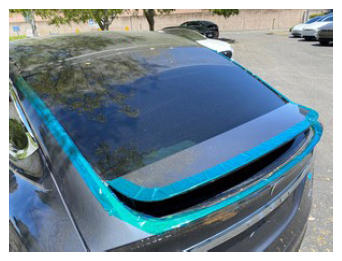

  9. Apply masking tape to areas around the liftgate and the active spoiler to prevent damage to the vehicle.
    G15390086Courtesy of TESLA, INC.
    G15390087Courtesy of TESLA, INC.
  10. Remove the spoiler applique. See Applique - Spoiler (Remove and Install) .

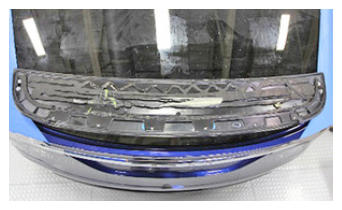

  11. Clean and remove excess urethane from the surface of the spoiler lower wing assembly.
    G15390088Courtesy of TESLA, INC.

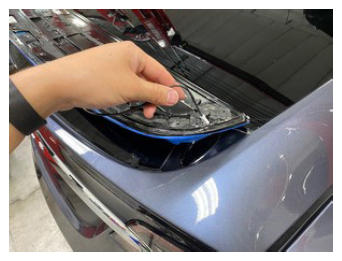

  12. Release the CHMSL electrical harness from the lower spoiler wing assembly.
    G15390089Courtesy of TESLA, INC.

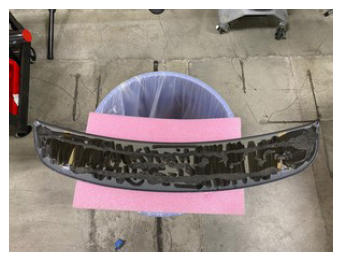

  13. Clean and remove excess urethane from underneath of the passive spoiler upper wing.
    NOTE: Place passive spoiler upper wing onto a soft surface and carefully remove the excess urethane.
    G15390090Courtesy of TESLA, INC.

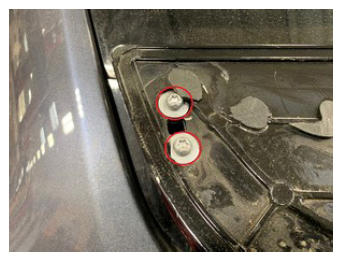

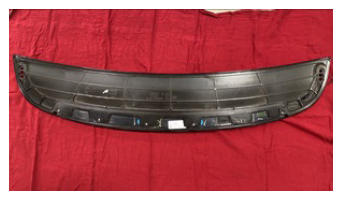

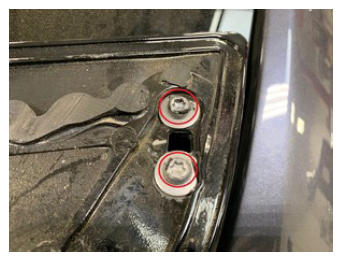

  14. Remove the screws (x4) that attach the passive spoiler assembly.
    NOTE: T30. Torque 6 N.m.
    G15390091Courtesy of TESLA, INC.
    G15390092Courtesy of TESLA, INC.
    G15390093Courtesy of TESLA, INC.
  15. Open the liftgate.

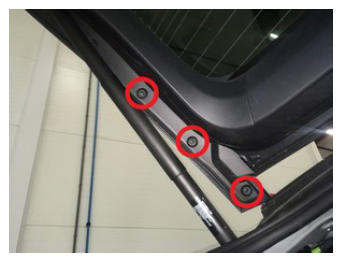

  16. Remove the LH pushpin clips (x3) that attach the liftgate side pinch sensor.
    G15390094Courtesy of TESLA, INC.

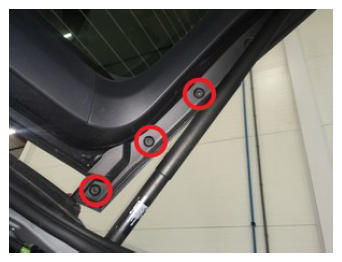

  17. Remove the RH pushpin clips (x3) that attach the liftgate side pinch sensor.
    G15390095Courtesy of TESLA, INC.

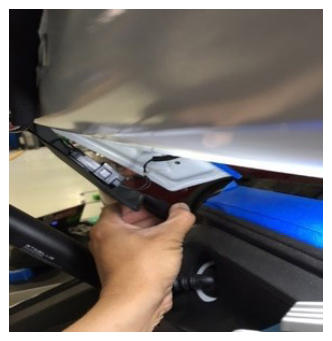

  18. Disconnect the upper rear liftgate pinch strip connector on the LH side of the rear liftgate.
    NOTE: Tape the harnesses to the liftgate to secure aside.
    G15390096Courtesy of TESLA, INC.

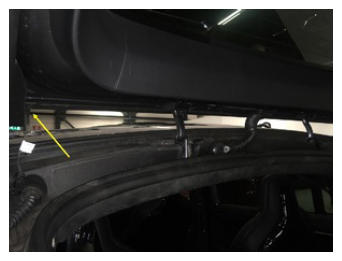

  19. Remove the front liftgate pinch sensor from backlight glass.
    NOTE: Pinch sensor is adhered with double sided tape.
    G15390097Courtesy of TESLA, INC.

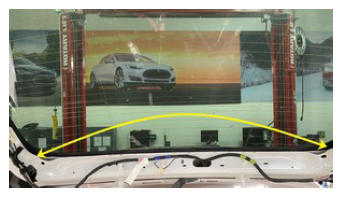

  20. Use equalizer blade to cut the adhesive on the top portion of backlight glass on liftgate assembly.
    G15390098Courtesy of TESLA, INC.

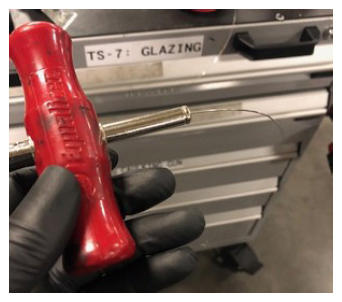

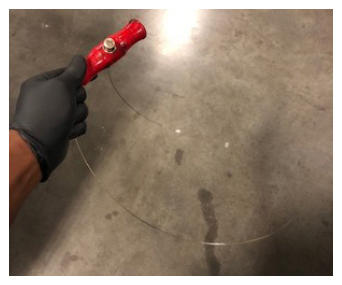

  21. Cut an appropriate length of square wire.
    G15390099Courtesy of TESLA, INC.
    G15390100Courtesy of TESLA, INC.

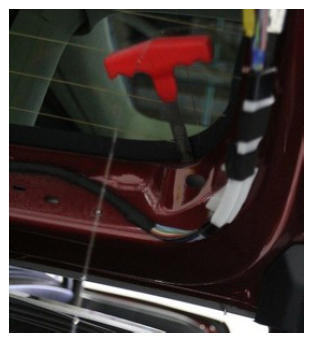

  22. Insert the wire starter through the adhesive near one of the upper corner.
    NOTE: Pull the wire through and remove the wire installer tool from the liftgate glass.
    G15390101Courtesy of TESLA, INC.

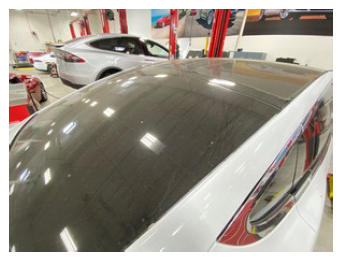

  23. Close the liftgate with an assistant inside.
    G15390102Courtesy of TESLA, INC.

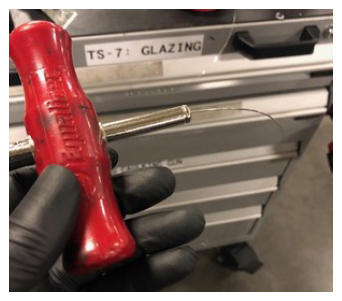

  24. Connect the T-handles to the wire.
    G15390103Courtesy of TESLA, INC.

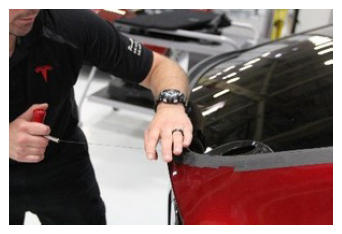

  25. Use T-handles to cut the urethane securing the backlight glass to the liftgate.
    CAUTION: Use protective material to prevent damage.
    G15390104Courtesy of TESLA, INC.

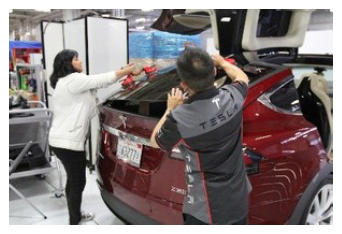

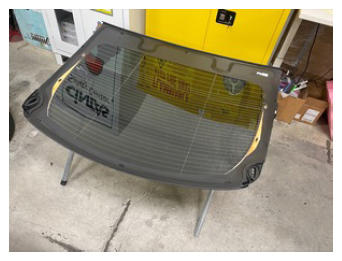

  26. With an assistant, attach suction cups (x2) to the backlight glass, and then lift up to remove the backlight glass from the liftgate assembly.
    NOTE: 1 suction cup each side.
    G15390105Courtesy of TESLA, INC.
    G15390106Courtesy of TESLA, INC.
