Connector End View - X408A [10/14/2016 - 8/20/2017]

Location:

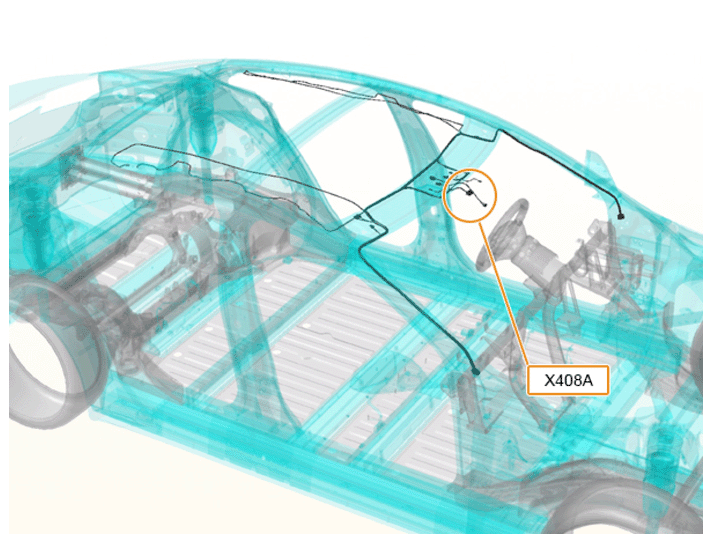

Fig 1: Connector Component Location - X408A [10/14/2016 - 8/20/2017]
G15011580Courtesy of TESLA, INC.

Connector Detail: sumitomo_6098-3811

Gender: UNSPEC

Color: BK

Fig 2: Connector End View - X408A [10/14/2016 - 8/20/2017]
G15011581Courtesy of TESLA, INC.
Cav Col Gauge
1 RD/BU 0.35
2 RD/GY 0.35
3 OG 0.35
4 GN 0.35
5 BK/WH 0.35
