Steering Rack (RHD RWD) (1st Generation) - Remove And Replace: Removal
- Remove the front subframe:
- Subframe Assembly - Front - 1st Generation (RWD) (Remove and Install). See Subframe Assembly - Front (1st Generation) (RWD) (Remove and Install)
- Subframe Assembly - Front - 2nd Generation (RWD) (Remove and Install). See Subframe Assembly - Front (2nd Generation) (RWD) (Remove and Install)
- Subframe Assembly - Front - 1st Generation (Dual Motor) (Remove and Install). See Subframe Assembly - Front (1st Generation) (Dual Motor) (Remove and Install)
- Subframe Assembly - Front - 2nd Generation (Dual Motor) (Remove and Install). See Subframe Assembly - Front (2nd Generation) (Dual Motor) (Remove and Install)

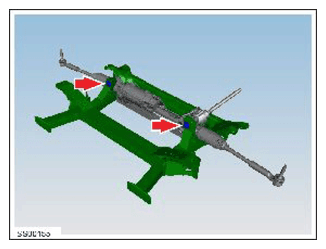

- Remove and discard the bolts that secure the steering rack assembly to the subframe (torque 175 N.m).CAUTION: Replace all patchbolt(s).NOTE: Record the positions of any shims.
Figure shows a LHD vehicle. RHD is a mirror image of this figure.
