Steering Rack (RHD Dual Motor) (2nd Generation) - Remove And Replace: Removal

  1. Remove the front subframe. See Subframe Assembly - Front (2nd Generation) (Dual Motor) (Remove and Install) .
  2. Remove the LH and RH tie rod ends. See Tie Rod End - LH (Remove And Replace) .

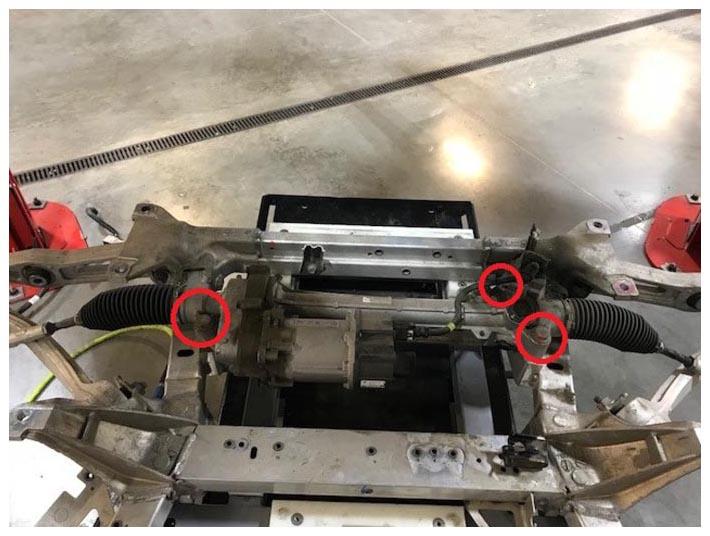

  3. Remove the bolts (x3) (torque 175 N.m) that attach the steering rack assembly to the subframe.
    G14981290Courtesy of TESLA, INC.
