Steering Rack (RHD Dual Motor) (1st Generation) - Remove And Replace: Removal

  1. Remove the front subframe. See Subframe Assembly - Front (1st Generation) (Dual Motor) (Remove and Install) .
  2. Remove the stabilizer bar from the subframe.

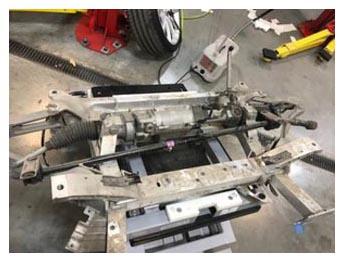

    G14981286Courtesy of TESLA, INC.
  3. Remove the LH tie rod end.
    NOTE: Count the number of turns and remember for installation.

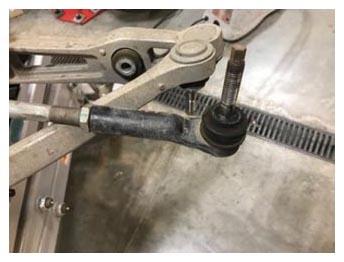

    G14981287Courtesy of TESLA, INC.
  4. Remove RH tie rod end.
    NOTE: Count the number of turns and remember for installation.

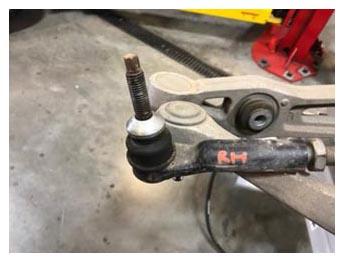

    G14981288Courtesy of TESLA, INC.
  5. Remove the bolts (x2) (torque 175 N.m) that attach the steering rack assembly to the subframe.
    NOTE: Record the positions of any shims.
