Steering Rack (LHD Dual Motor) (1st Generation) - Remove And Replace: Removal

Remove the front subframe:
- Subframe Assembly - Front - 1st Generation (Dual Motor) (Remove and Install). See Subframe Assembly - Front (1st Generation) (Dual Motor) (Remove and Install)
- Subframe Assembly - Front - 2nd Generation (Dual Motor) (Remove and Install). See Subframe Assembly - Front (2nd Generation) (Dual Motor) (Remove and Install)

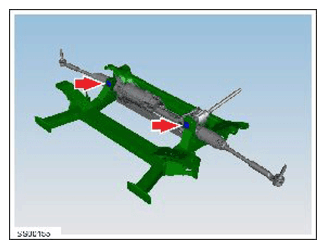

Remove and discard the bolts that secure the steering rack assembly to the subframe (torque 175 N.m).
CAUTION: Replace all Patchbolt(s).

NOTE: Record the positions of any shims.

Courtesy of TESLA, INC.
