Sensor - Pressure Tube - Remove And Replace: Removal

  1. Disconnect 12V power Disconnect 12V Power .
  2. Remove the front fascia Fascia Assembly - Front (Remove And Install) .
  3. Remove the sensor shroud that covers the LH module.

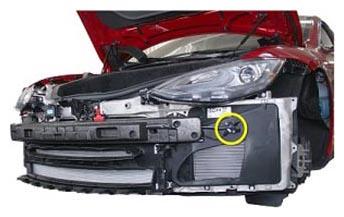

  4. Release the fasteners (x2) that secure the LH module to the vehicle (torque 2.5 N.m). Disconnect the harness connector.
    G14979929Courtesy of TESLA, INC.
  5. Repeat steps  3 and  4 on the RH side of the vehicle.

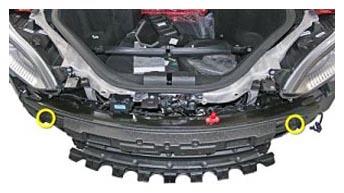

  6. Remove and discard the outboard clips (x2) that secure the foam assembly to the front bumper.
    G14979930Courtesy of TESLA, INC.
  7. Remove and discard the foam, pedestrian protection sensor assembly, and inboard fir tree clips (x3).
    NOTE: There are fir tree clips (x3) on the inboard side of the foam, so additional force might be required when removing the foam and pedestrian protection sensor assembly.
    G14979931Courtesy of TESLA, INC.
