Sensor - Pressure Tube - Remove And Replace: Installation

Installation procedure is the reverse of removal, except for the following:

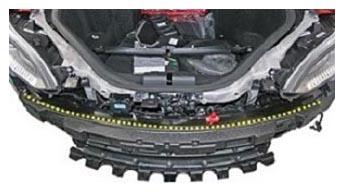

• When inserting the pedestrian protection sensor into the foam assembly, ensure that the center marking on the tube lines up with the center inboard fir tree clip and that the tube is not twisted.
• Replace the inboard fir tree clips (x3) and outboard clips (x2) that secure the foam assembly to the bumper.
• Ensure that the foam is evenly flush with the front bumper. If there are any inconsistent gaps, reinstall the pedestrian protection sensor.

  Courtesy of TESLA, INC.

• If the component was replaced due to an internal failure:
  1. Connect a laptop with Toolbox 3 to the vehicle.
  2. Unlock the gateway. See Gateway Unlock
  3. In Toolbox 3, click the Tools  tab, type "DTC" into the search field, click DTCs  , and then select SDM or RCM depending on the Restraint Control Type of the vehicle.
  4. Click Read DTCs to display the DTCs.
  5. Click Clear DTCs to clear the DTCs.
