Tire Rotation Patterns: Notes

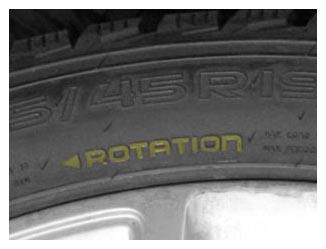

The appropriate tire rotation pattern depends on the design of the tire. Check the sidewall to see if there is an arrow showing a specific rotation direction. If so, the tire is directional. When the vehicle is traveling forward, these tires must roll in the indicated direction.

G14974646Courtesy of TESLA, INC.
