USB Hub - Center Console - Front - Remove And Replace: Remove

WARNING: This page is about a different car, the 2024 Tesla Model X, 2023 Tesla Model X, 2022 Tesla Model X, and 2021 Tesla Model X. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the RH front door and lower the RH front window.
  2. Move the front passenger seat rearward.

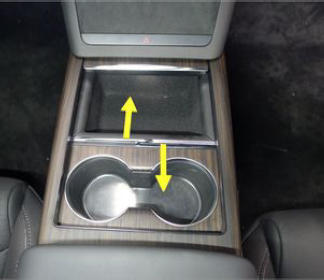

  3. Fully retract the center console lid, cupholder, and sliding tray into the locked position.

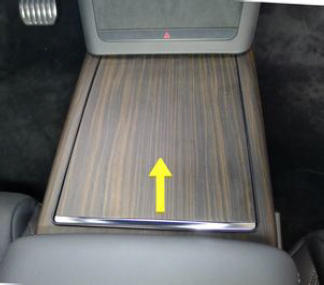

    G15409112Courtesy of TESLA, INC.
    G15409113Courtesy of TESLA, INC.

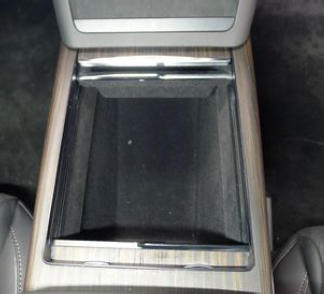

    G15409114Courtesy of TESLA, INC.

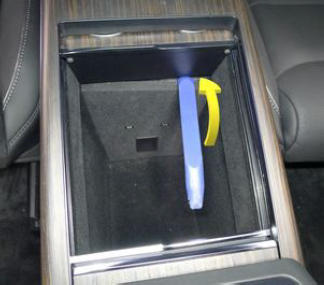

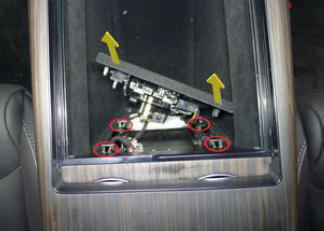

  4. Release the clips (x4) that attach the center console service panel to the center console assembly, and then pull the panel upward to access the electrical harness.
    NOTE: Use a 90 degree plastic trim tool.

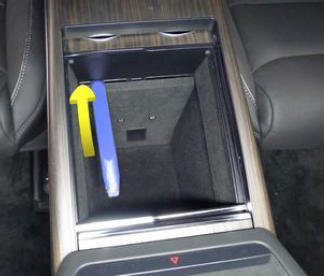

    G15409115Courtesy of TESLA, INC.
    G15409116Courtesy of TESLA, INC.
    G15409117Courtesy of TESLA, INC.

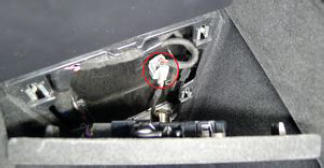

  5. Disconnect the electrical connectors (x3), and then release the clip that attaches the electrical connector to the center console service panel.

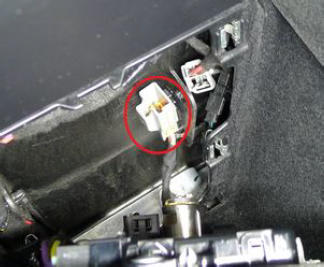

    G15409118Courtesy of TESLA, INC.
    G15409119Courtesy of TESLA, INC.
    G15409120Courtesy of TESLA, INC.

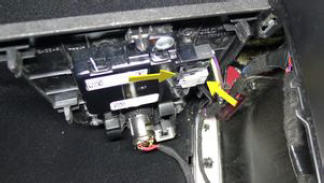

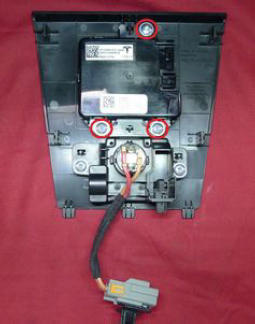

  6. Remove the screws (x3) that attach the front center console USB hub to the center console service panel assembly, and then remove the USB hub from the assembly.
    NOTE: Use of the following tool(s) is recommended:
    • Torx T20 socket

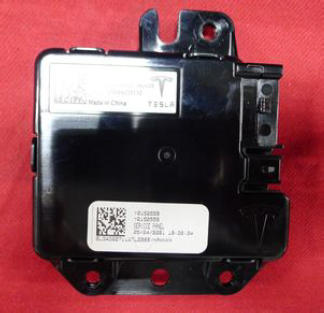

    G15409121Courtesy of TESLA, INC.
