USB Hub - Center Console - Front - Remove And Replace: Install

WARNING: This page is about a different car, the 2024 Tesla Model X, 2023 Tesla Model X, 2022 Tesla Model X, and 2021 Tesla Model X. However, it is still accessible from the selected car via links, so may be relevant.

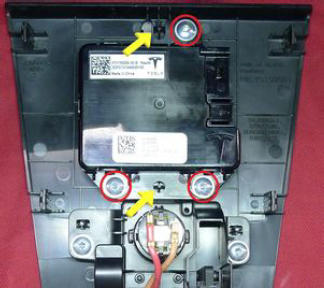

Position the front center console USB hub into the center console service panel assembly, and then install the screws (x3) that attach the USB hub to the assembly.
NOTE:
Use of the following tool(s) is recommended:
- Torx T20 socket
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

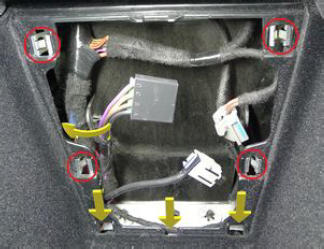

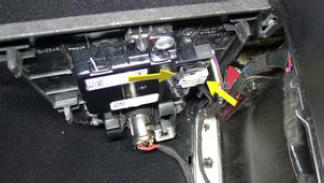

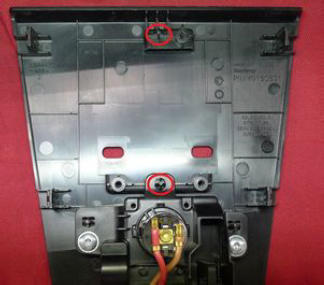

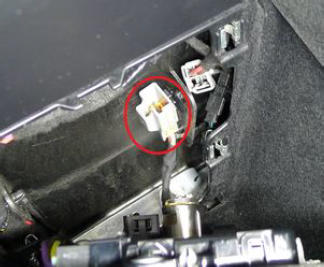

Position the center console service panel into the center console assembly, connect the electrical connectors (x3), and then secure the clip that attaches the electrical connector to the service panel.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

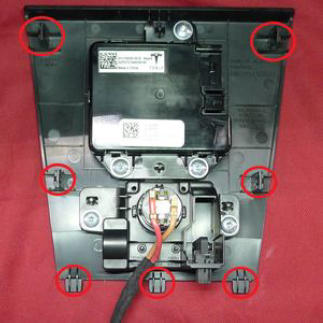

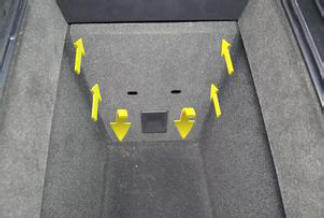

Secure the clips (x4) that attach the center console service panel assembly to the center console.

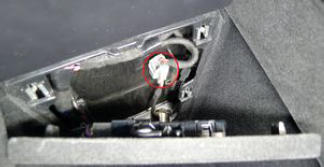

NOTE: Make sure the connector X1131 and X881 is positioned to the right of the main harness for USB hub clearance.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Close the center console.
Move the front passenger seat to the original position.
Raise the RH front window and close the RH front door.
