Connectivity Board - Car Computer - Remove And Replace: Remove

WARNING: This page is about a different car, the 2024 Tesla Model S, 2023 Tesla Model S, 2022 Tesla Model S, and 2021 Tesla Model S. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the RH front door.
  2. Lower the RH front window.
  3. Move the RH front seat backwards.
  4. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
  5. Disconnect LV power. See LV Power (Disconnect and Connect) .
  6. Remove the RH front floor mat.

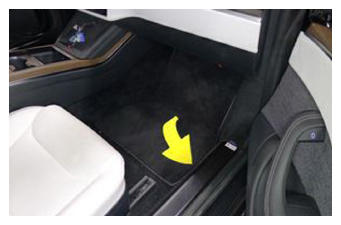

    G15101139Courtesy of TESLA, INC.
  7. Remove the passenger footwell cover. See Cover - Footwell - Passenger (Remove and Replace) .
  8. Remove the RH middle A-pillar trim. See Trim - A-Pillar - Middle - LH (Remove and Replace) .
  9. Remove the RH lower A-pillar trim. See Trim - A-Pillar - Lower - LH (Remove and Replace) .
  10. Fold the RH front cabin carpet aside for access.

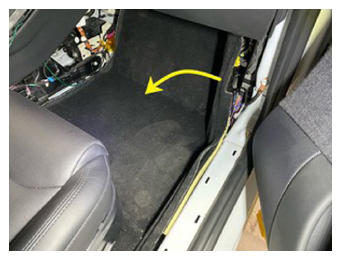

    G15101140Courtesy of TESLA, INC.
  11. Remove the RH center console side panel carpet. See Carpet - Side Panel - Center Console - LH (Remove and Replace) .
  12. Remove the front passenger footrest panel. See Panel - Footrest - Front Passenger (LHD) (Remove and Replace) .
  13. Disconnect the car computer connectivity board connector on the LH side of the AP mother board.
    NOTE: Disconnect the (brown) antenna connector that crosses in front of car computer cover. Release the lock on the connector before removal.

    Tip: Use of the following tool(s) is recommended:

    • Pocket screwdriver

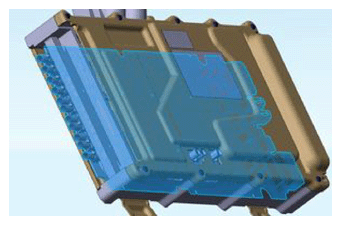

    G15101141Courtesy of TESLA, INC.
    G15101142Courtesy of TESLA, INC.
  14. Disconnect the car computer connectivity board connector.
    NOTE: Move the release lock rearwards before removal.

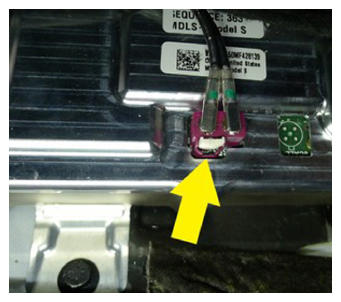

    G15101143Courtesy of TESLA, INC.

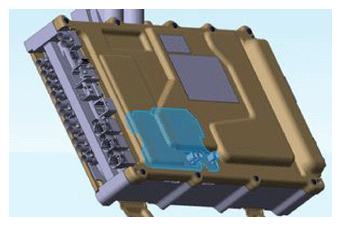

    G15101144Courtesy of TESLA, INC.

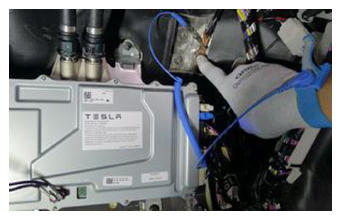

  15. Put on the ESD wrist strap and connect to vehicle ground.

    Tip: Use of the following tool(s) is recommended:

    • ESD wrist strap - 1080292-00-A
    G15101145Courtesy of TESLA, INC.

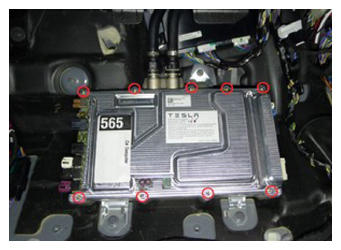

  16. Remove and discard the screws (x9) that attach the car computer connectivity board cover to the connectivity board, and then remove the cover from the board.

    Tip: Use of the following tool(s) is recommended:

    • ESD wrist strap - 1080292-00-A
    • Mini ratchet bit set
    G15101146Courtesy of TESLA, INC.
    G15101147Courtesy of TESLA, INC.

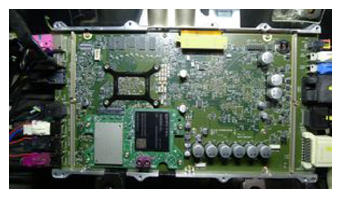

    G15101148Courtesy of TESLA, INC.

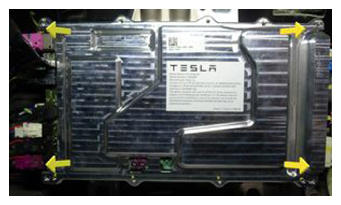

  17. Remove and discard the screws (x6) that attach the car computer connectivity board to the vehicle.

    Tip: Use of the following tool(s) is recommended:

    • ESD wrist strap - 1080292-00-A
    • Mini ratchet bit set

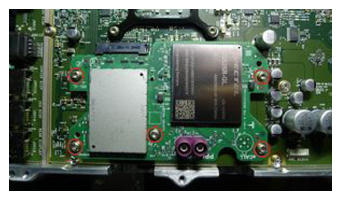

    G15101149Courtesy of TESLA, INC.

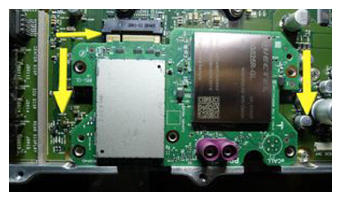

  18. Carefully slide the car computer connectivity board downwards to disconnect the PCB connector, and then remove the connectivity board from the vehicle.
    NOTE: Ensure full disengagement of the connectivity board before attempting to remove.

    Tip: Use of the following tool(s) is recommended:

    • ESD wrist strap - 1080292-00-A
    G15101150Courtesy of TESLA, INC.

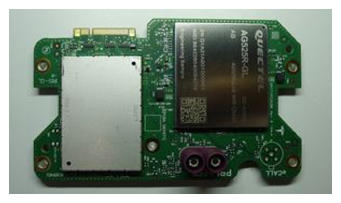

    G15101151Courtesy of TESLA, INC.
