Connectivity Board - Car Computer - Remove And Replace: Install

WARNING: This page is about a different car, the 2024 Tesla Model S, 2023 Tesla Model S, 2022 Tesla Model S, and 2021 Tesla Model S. However, it is still accessible from the selected car via links, so may be relevant.

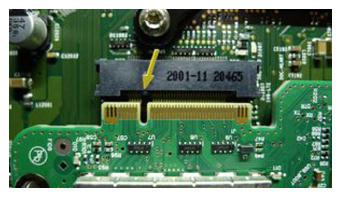

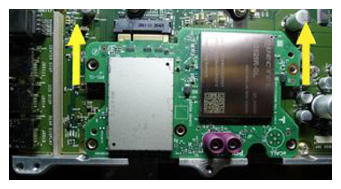

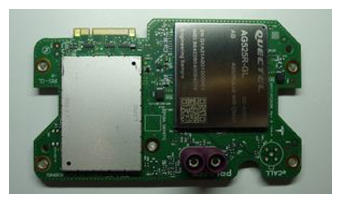

  1. Position the car computer connectivity board on the vehicle, and then carefully slide the connectivity board upwards to connect the PCB connector.
    NOTE: Align the datum with the slot in the connectivity card and fully engage.

    Tip: Use of the following tool(s) is recommended:

    • ESD wrist strap - 1080292-00-A
    G15101152Courtesy of TESLA, INC.
    G15101153Courtesy of TESLA, INC.
    G15101154Courtesy of TESLA, INC.

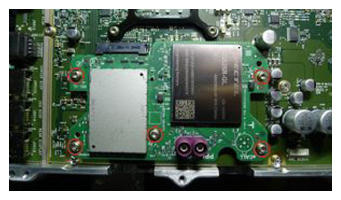

  2. Install the new screws (x6) that attach the car computer connectivity board to the vehicle.

    0.7 N.m (6 in-lbs)

    Tip: Use of the following tool(s) is recommended:

    • T10 blade attachment
    • ESD wrist strap - 1080292-00-A
    • Mini ratchet bit set
    • Wiha torque setter
    • Wiha torqueVario-S 0.10 N.m - 0.6 N.m
    G15101155Courtesy of TESLA, INC.

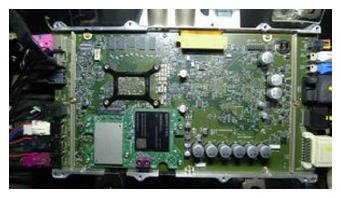

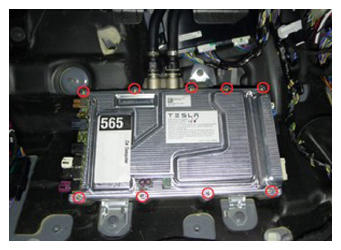

  3. Position the car computer connectivity board cover on the connectivity board, and then install the new screws (x9) that attach the cover to the board.

    1.4 N.m (1.0 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • ESD wrist strap - 1080292-00-A
    • Mini ratchet bit set
    • Ratchet/torque wrench
    G15101156Courtesy of TESLA, INC.
    G15101157Courtesy of TESLA, INC.
    G15101158Courtesy of TESLA, INC.
  4. Remove the ESD wrist strap.

    Tip: Use of the following tool(s) is recommended:

    • ESD wrist strap - 1080292-00-A
    G15101159Courtesy of TESLA, INC.

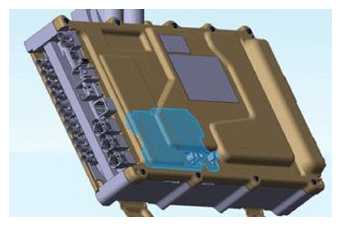

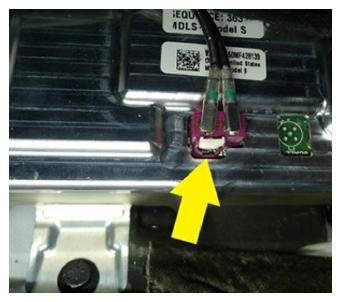

  5. Connect the car computer connectivity board connector.
    NOTE: Engage the release lock underneath the connector.
    G15101160Courtesy of TESLA, INC.
    G15101161Courtesy of TESLA, INC.

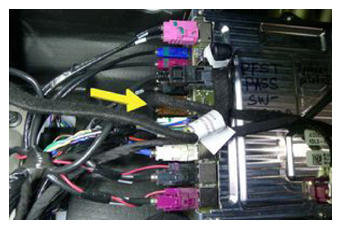

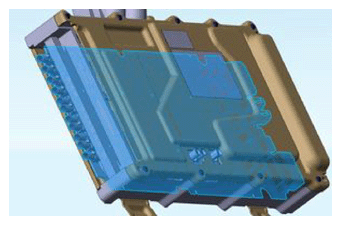

  6. Connect the car computer connectivity board connector on the LH side of the AP mother board.
    G15101162Courtesy of TESLA, INC.
    G15101163Courtesy of TESLA, INC.
  7. Install the front passenger footrest panel. See Panel - Footrest - Front Passenger (LHD) (Remove and Replace) .

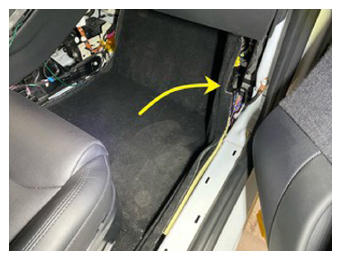

  8. Fold the RH front cabin carpet into original position.
    G15101164Courtesy of TESLA, INC.
  9. Install the RH middle A-pillar trim. See Trim - A-Pillar - Middle - LH (Remove and Replace) .
  10. Install the RH lower A-pillar trim. See Trim - A-Pillar - Lower - LH (Remove and Replace) .
  11. Install the RH center console side panel carpet. See Carpet - Side Panel - Center Console - LH (Remove and Replace) .
  12. Install the passenger footwell cover. See Cover - Footwell - Passenger (Remove and Replace) .

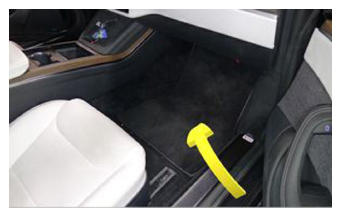

  13. Install the RH front floor mat.
    G15101165Courtesy of TESLA, INC.
  14. Connect LV power. See LV Power (Disconnect and Connect) .
  15. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
  16. Move the RH front seat into original position.

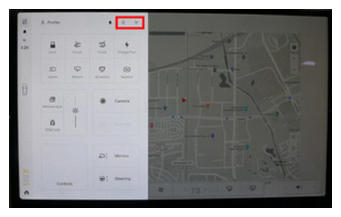

  17. Verify BT, WiFi, and LTE are functioning properly.
    G15101166Courtesy of TESLA, INC.
  18. Raise the RH front window.
  19. Close the RH front door.
