USB Hub - Center Console - Front - Remove And Replace: Remove

WARNING: This page is about a different car, the 2024 Tesla Model S, 2023 Tesla Model S, 2022 Tesla Model S, and 2021 Tesla Model S. However, it is still accessible from the selected car via links, so may be relevant.

Open the RH front door and lower the RH front window.
Move the front passenger seat rearward.

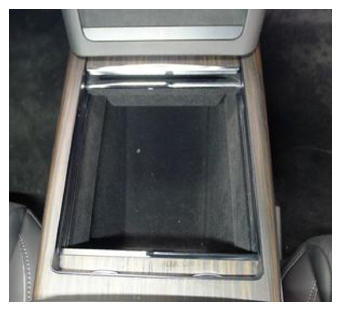

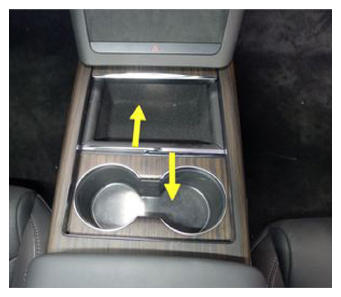

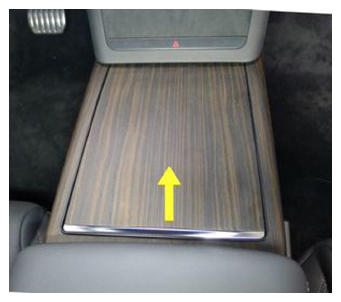

Fully retract the center console lid, cupholder and sliding tray into the locked position.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

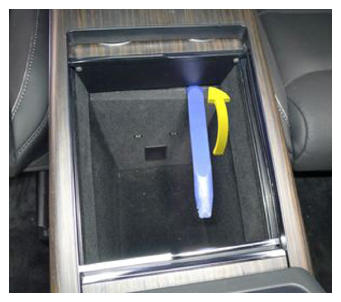

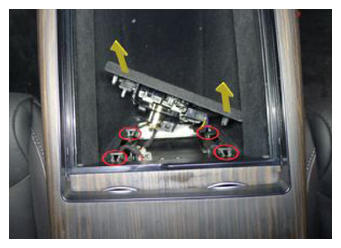

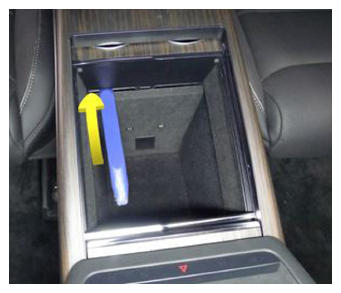

Use a 90 degree plastic trim tool to release the clips (x4) that attach the center console service panel to the center console, and then pull the panel upward to access the harness.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

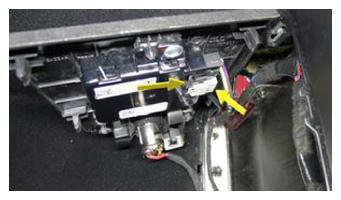

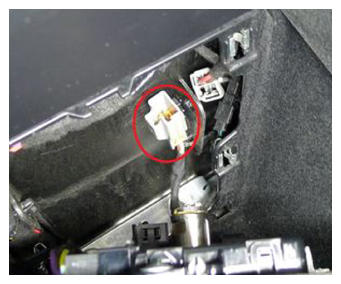

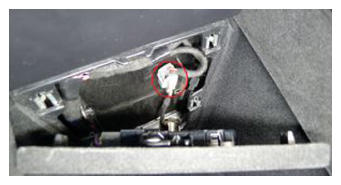

Disconnect the center console service panel electrical connectors (x3), and then remove the assembly from the center console.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

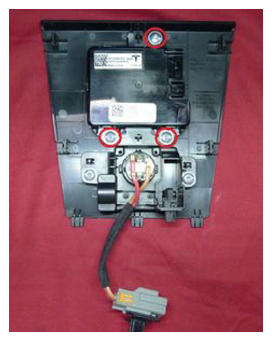

Remove the screws (x3) that attach the front USB hub to the service panel assembly.
1.5 N.m (1.1 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- T20 socket
Courtesy of TESLA, INC.
