Tuner - FM/HD/XM - Remove And Replace: Install

WARNING: This page is about a different car, the 2024 Tesla Model S, 2023 Tesla Model S, 2022 Tesla Model S, and 2021 Tesla Model S. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the FM/HD tuner into the liftgate, and then install the bolts (x3) that attach the tuner to the liftgate.

    NaN N.m (NaN ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket

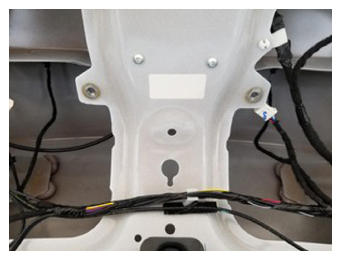

    G15101230Courtesy of TESLA, INC.

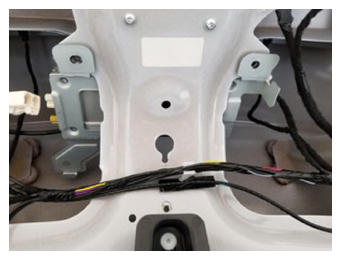

    G15101231Courtesy of TESLA, INC.

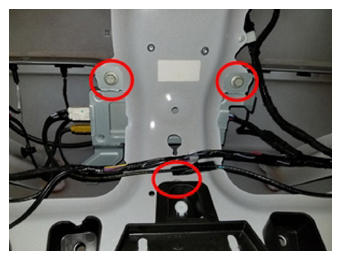

    G15101232Courtesy of TESLA, INC.
  2. Connect the RH liftgate harness electrical connector on the RH side of the FM/HD tuner.

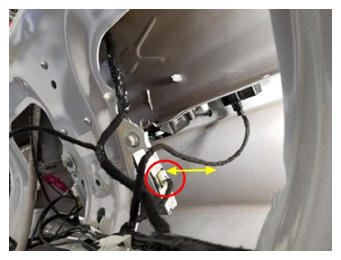

    G15101233Courtesy of TESLA, INC.
  3. Connect the RH liftgate harness electrical connector on the LH side of the FM/HD tuner.

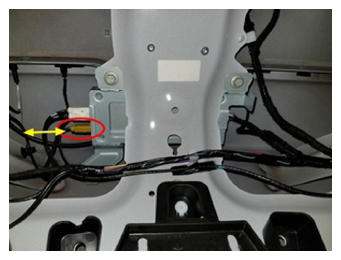

    G15101234Courtesy of TESLA, INC.
  4. Connect the coax connector on the tuner harness to the FM/HD tuner.

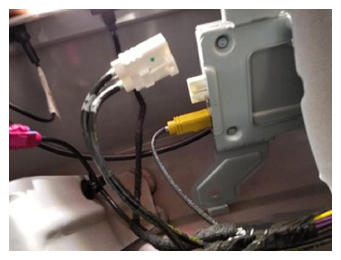

    G15101235Courtesy of TESLA, INC.

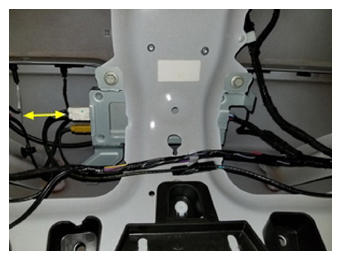

    G15101236Courtesy of TESLA, INC.
  5. Install the lower liftgate trim. See Trim - Liftgate - Lower (Remove and Replace) .
  6. Connect a laptop with Toolbox 3 to the vehicle.
  7. In Toolbox, click the Actions  tab, and then type "Tuner" in the search field.
  8. Click the play button next to PING-BASH_TUNER  , and then click Run  .
  9. Disconnect Toolbox and remove the laptop from the vehicle.
