Liftgate Glass - Remove And Install: Remove

WARNING: This page is about a different car, the 2024 Tesla Model S, 2023 Tesla Model S, 2022 Tesla Model S, and 2021 Tesla Model S. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear trunk parcel shelf. See Parcel Shelf - Rear Trunk (Remove and Replace) .
  2. Remove the rear trunk load floor. See Trunk Load Floor - Rear (Remove and Replace) .
  3. Remove the lower liftgate trim. See Trim - Liftgate - Lower (Remove and Replace) .
  4. Remove the liftgate speaker grille. See Grille - Speaker - Liftgate (Remove and Replace) .
  5. Remove the upper liftgate grim. See Trim - Upper - Liftgate (Remove and Replace) .

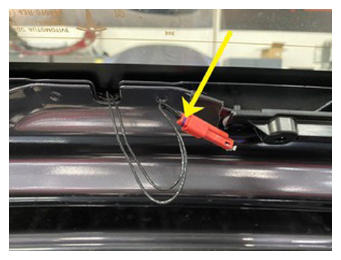

  6. Disconnect the CHMSL electrical connector.
    G15078781Courtesy of TESLA, INC.

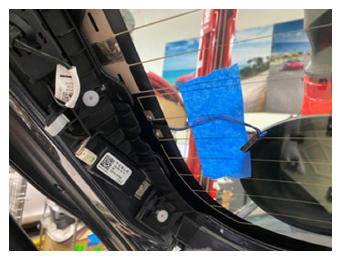

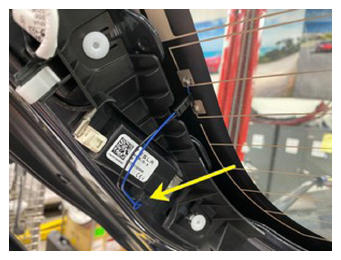

  7. Disconnect the LH antenna amplifier electrical connector, and then use masking tape to secure the harness onto the liftgate glass.
    G15078782Courtesy of TESLA, INC.
    G15078783Courtesy of TESLA, INC.

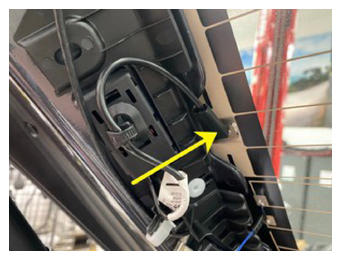

  8. Disconnect the LH antenna RF filter electrical connector.
    G15078784Courtesy of TESLA, INC.

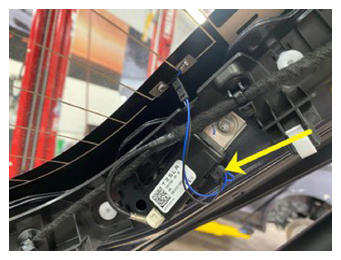

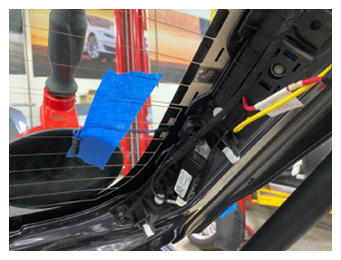

  9. Disconnect the RH antenna amplifier electrical connector, and then use masking tape to secure the harness onto the liftgate glass.
    G15078785Courtesy of TESLA, INC.
    G15078786Courtesy of TESLA, INC.

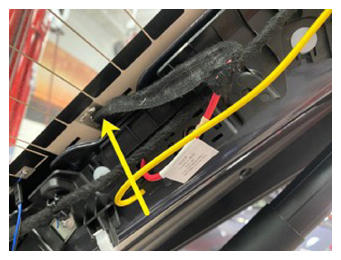

  10. Disconnect the RH antenna RF filter electrical connector.
    G15078787Courtesy of TESLA, INC.

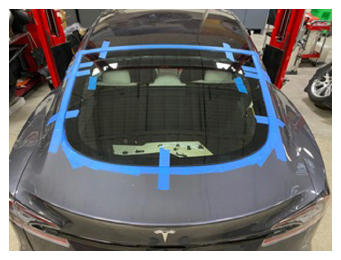

  11. Apply tape to the body surrounding the liftgate glass assembly for protection.
    G15078788Courtesy of TESLA, INC.

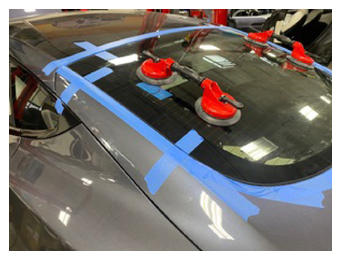

  12. Clean the liftgate glass, and then secure double suction cup handles onto both sides of the liftgate glass.
    G15078789Courtesy of TESLA, INC.
  13. Cut a suitable length of square wire to use with T-handles.

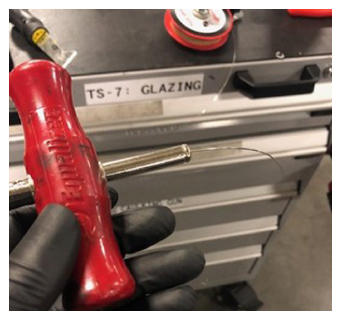

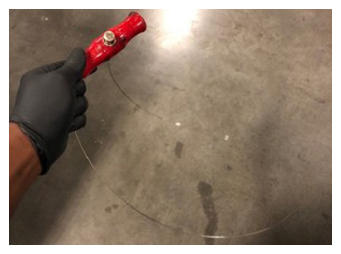

  14. Attach the square wire into the T-handle.
    G15078790Courtesy of TESLA, INC.
    G15078791Courtesy of TESLA, INC.

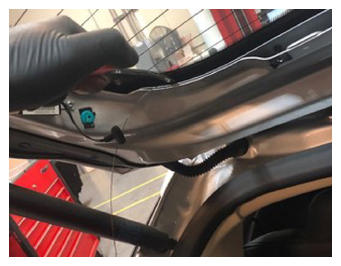

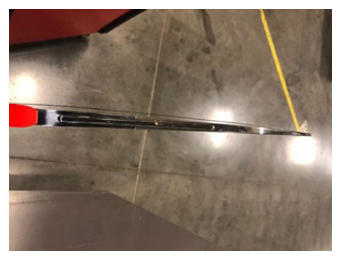

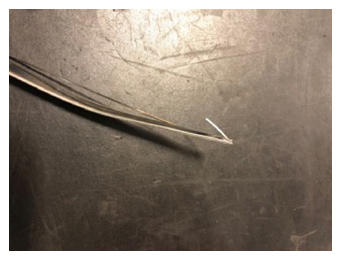

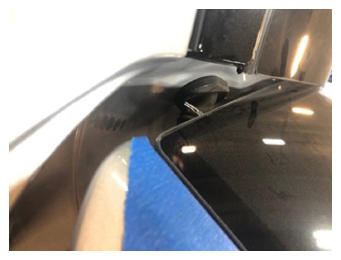

  15. Secure the wire to the starter tool and push the tool through the urethane at the upper left side of the liftgate glass.
    NOTE: Carefully push starter wire tool in between the liftgate glass assembly and CHMSL.
    G15078792Courtesy of TESLA, INC.
    G15078793Courtesy of TESLA, INC.
    G15078794Courtesy of TESLA, INC.
    G15078795Courtesy of TESLA, INC.

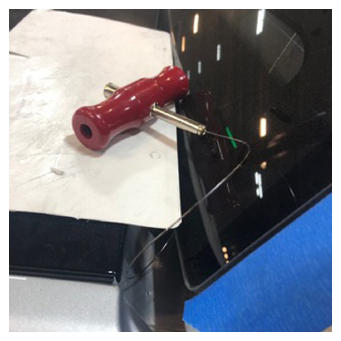

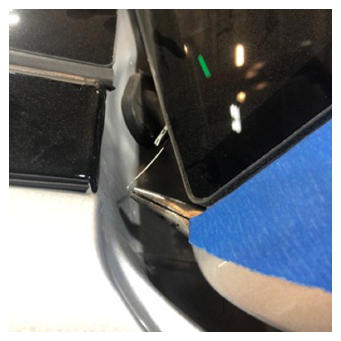

  16. Remove the square wire from the starter tool and secure the wire into one T-handle.
    G15078796Courtesy of TESLA, INC.
    G15078797Courtesy of TESLA, INC.
  17. Remove wire starter tool from the vehicle.

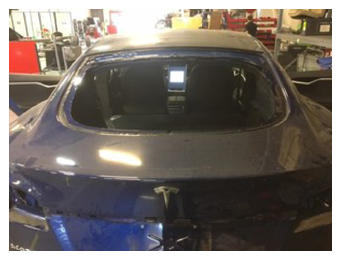

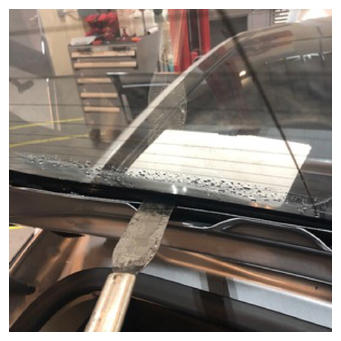

  18. With an assistant, use the T-handles to cut the urethane that attaches the liftgate glass to the liftgate.
    NOTE: If wire is getting caught on CHMSL, an equalizer can be used to separate the CHMSL from the liftgate glass.
    G15078798Courtesy of TESLA, INC.
    G15078799Courtesy of TESLA, INC.
  19. Remove the tape from body.
    NOTE: Inspect the body and liftgate assembly for any nicks that may need touch up paint.

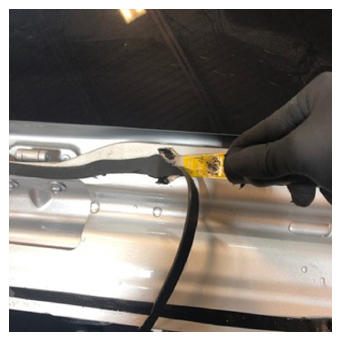

  20. Use a blade scraper to remove the urethane bead from the liftgate assembly.
    G15078800Courtesy of TESLA, INC.

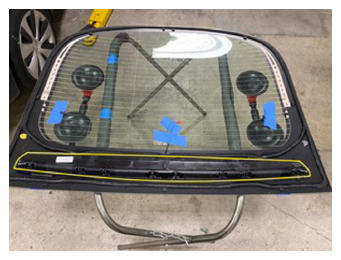

  21. Remove the CHMSL from the liftgate glass.
    G15078801Courtesy of TESLA, INC.

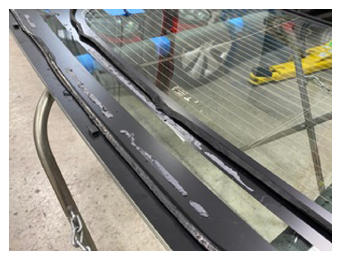

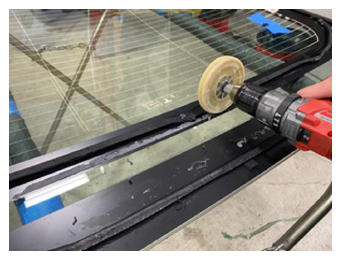

  22. Carefully remove any adhesive residue from the liftgate glass.
    G15078802Courtesy of TESLA, INC.
    G15078803Courtesy of TESLA, INC.

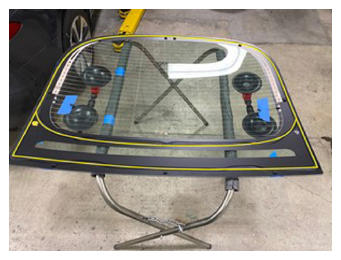

  23. Carefully remove remaining urethane from the liftgate glass.
    G15078804Courtesy of TESLA, INC.
