Service Panel - Instrument Panel - Remove And Replace: Install

WARNING: This page is about a different car, the 2024 Tesla Model Y, 2023 Tesla Model Y, 2022 Tesla Model Y, 2021 Tesla Model Y, and 2020 Tesla Model Y. However, it is still accessible from the selected car via links, so may be relevant.

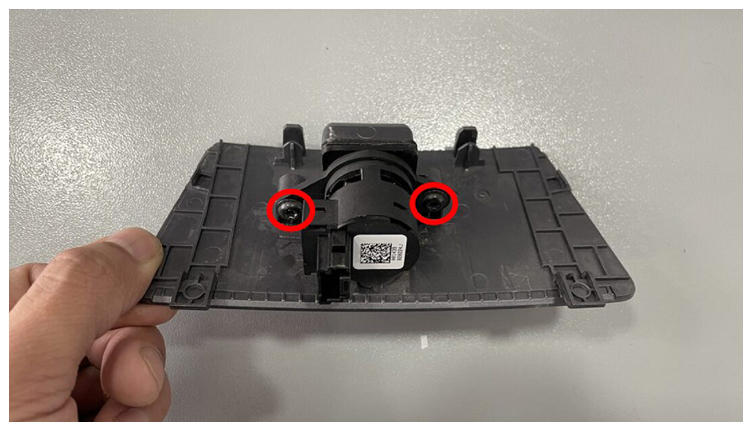

  1. Position the cabin temperature sensor to instrument panel service panel, and then install the bolts (x2) that attach the sensor to the service panel.

    0.7 N.m (6 lbs-in)

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 bit
    G14838614Courtesy of TESLA, INC.
  2. Position the instrument panel service panel assembly to the instrument panel, connect the temperature sensor connector, and then secure the clips (x4) and tabs (x4) that attach the service panel to the vehicle.
    G14838615Courtesy of TESLA, INC.
    G14838616Courtesy of TESLA, INC.
  3. Raise the LH front window and close the LH front door.
