USB Hub - Center Console - Front (2.0) - Remove And Replace: Remove

WARNING: This page is about a different car, the 2024 Tesla Model Y, 2023 Tesla Model Y, 2022 Tesla Model Y, 2021 Tesla Model Y, and 2020 Tesla Model Y. However, it is still accessible from the selected car via links, so may be relevant.

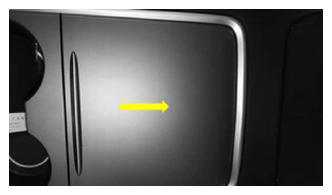

  1. Open the sliding bin lid of the center console.
    G14838918Courtesy of TESLA, INC.

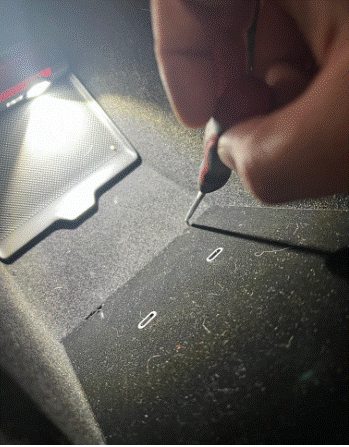

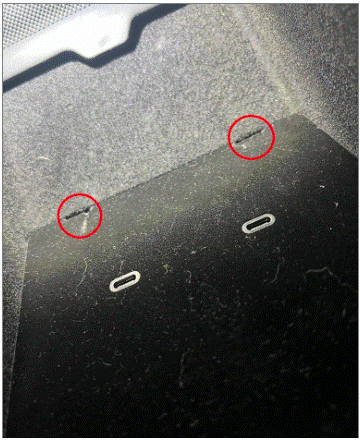

  2. Release the clips (x2) through the slots with a pick, and then release the rest of the clips (x3) that attach the bottom of the USB hub to the center console.
    G00642528Courtesy of TESLA, INC.
    G00642529Courtesy of TESLA, INC.
    G14838920Courtesy of TESLA, INC.

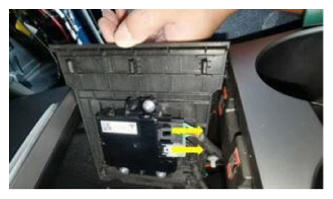

  3. Disconnect the electrical harness from the USB hub connectors (x2), and then remove the USB panel from the center console.
    G14838921Courtesy of TESLA, INC.

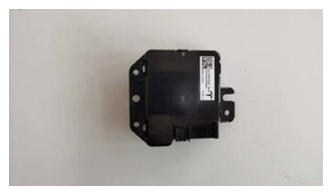

  4. Remove the screws (x3) that attach the USB hub to the USB panel, and then remove the hub from the panel.
    G14838922Courtesy of TESLA, INC.
    G14838923Courtesy of TESLA, INC.
