USB Hub - Center Console - Front (2.0) - Remove And Replace: Install

WARNING: This page is about a different car, the 2024 Tesla Model Y, 2023 Tesla Model Y, 2022 Tesla Model Y, 2021 Tesla Model Y, and 2020 Tesla Model Y. However, it is still accessible from the selected car via links, so may be relevant.

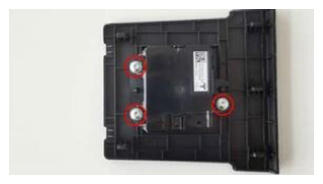

  1. Install the USB hub to the USB panel, and then install the screws that attach the hub to the panel.

    1.1 N.m (.8 ft-lbs)

    G14838924Courtesy of TESLA, INC.

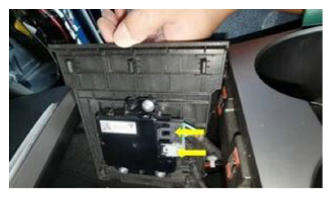

  2. Position the USB panel into the center console storage bin, and then connect the electrical harness to the USB hub connectors (x2).
    G14838925Courtesy of TESLA, INC.

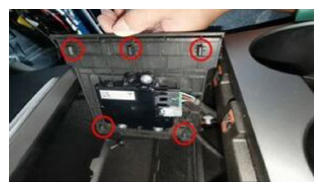

  3. Move the USB hub to the rear of the center console, and then fasten the clips (x5) that attach the USB hub to the rear of the center console.
    G14838926Courtesy of TESLA, INC.

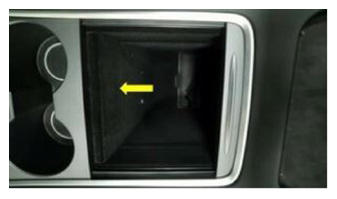

  4. Close the storage bin lid of the center console.
    G14838927Courtesy of TESLA, INC.
