Touchscreen - Remove and Replace: Install

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Tesla Model 3, 2022 Tesla Model 3, 2021 Tesla Model 3, 2020 Tesla Model 3, and 2019 Tesla Model 3. However, it is still accessible from the selected car via links, so may be relevant.

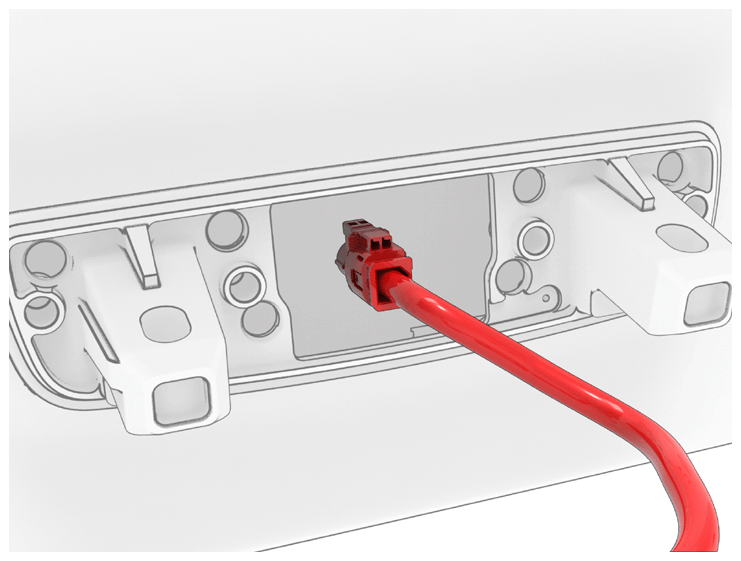

  1. Position the center display housing onto the vehicle, and then insert the touchscreen electrical connector through the rear of the housing.
  2. Position the touchscreen onto the center display housing, and then connect the touchscreen electrical connector to the touchscreen.
    G14748123Courtesy of TESLA, INC.

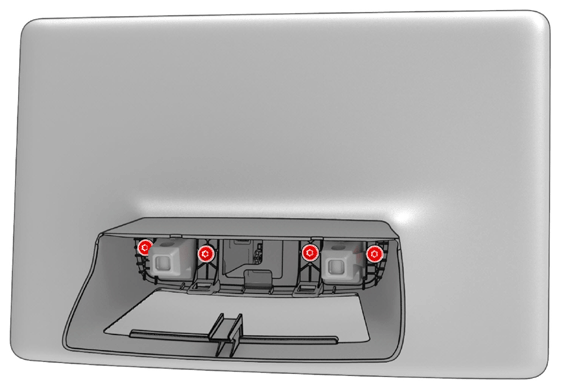

  3. Install the screws that attach the center display housing to the touchscreen.

    3 N.m (2.2 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T30 socket
    • 1/4 in std ratchet
    • 1/4 in torque wrench (installation only)
    • 2 in extension
    G14748124Courtesy of TESLA, INC.

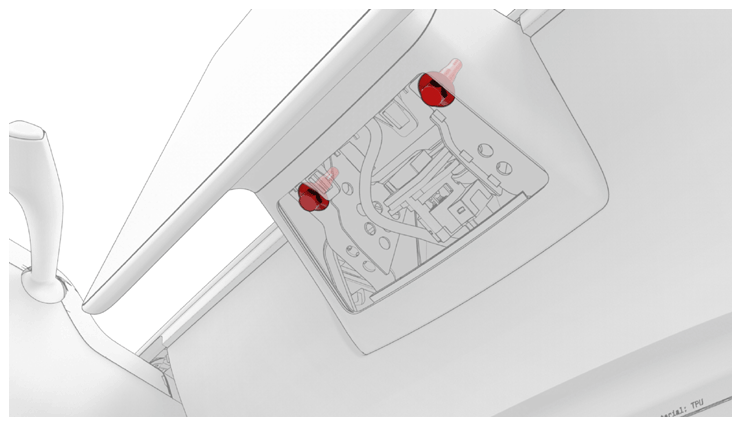

  4. Position the touchscreen on the instrument panel, slide it toward the front of the vehicle, and then install new bolts that attach the touchscreen to the instrument panel.

    16 N.m (11.8 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    • 1/4 in std ratchet
    • 1/4 in torque wrench (installation only)
    • 4 in extension
    G14748125Courtesy of TESLA, INC.
  5. Connect the temperature sensor to the service panel.
    NOTE: The connector orientation is facing towards the LH side of the vehicle.

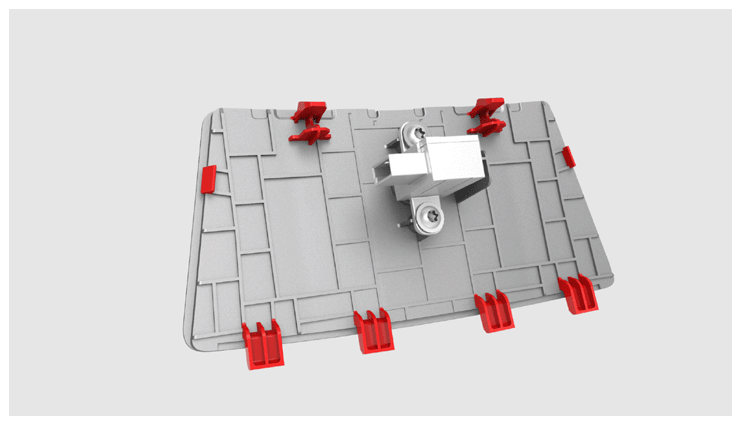

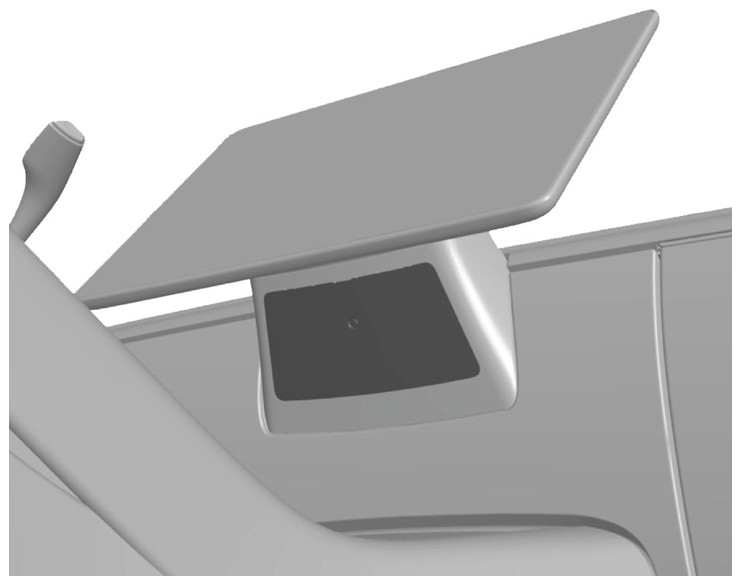

  6. Install the clips and tabs that attach the service panel to the instrument panel.
    G14748126Courtesy of TESLA, INC.
    G14748127Courtesy of TESLA, INC.
  7. Connect 12V power. See 12V/LV POWER (DISCONNECT AND CONNECT) .
  8. Install the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
  9. Install the 2nd row lower seat cushion. See SEAT CUSHION - LOWER - 2ND ROW (REMOVE AND REPLACE) .
  10. Connect a laptop with Toolbox 3 to the vehicle.
  11. In Toolbox, type "Display" in the search field.
    NOTE: Make sure "Actions" is selected, if not already.
  12. Click the Play  button next to "PING-BASH-DISPLAY", and then select Run  .
  13. In Toolbox, type "GATEWAY" in the search field.
  14. Click the Play  button next to "PROC-ICE-X-GATEWAY-REBOOT", and then select Run  .
    NOTE: This will reboot the gateway.
