Connectivity Board - Car Computer (HW2.5) - Remove and Replace: Remove

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Tesla Model 3, 2022 Tesla Model 3, 2021 Tesla Model 3, 2020 Tesla Model 3, and 2019 Tesla Model 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect 12V power. See 12V/LV POWER (DISCONNECT AND CONNECT) .
  2. Remove the front passenger knee airbag. See AIRBAG - KNEE - FRONT PASSENGER (REMOVE AND REPLACE) .

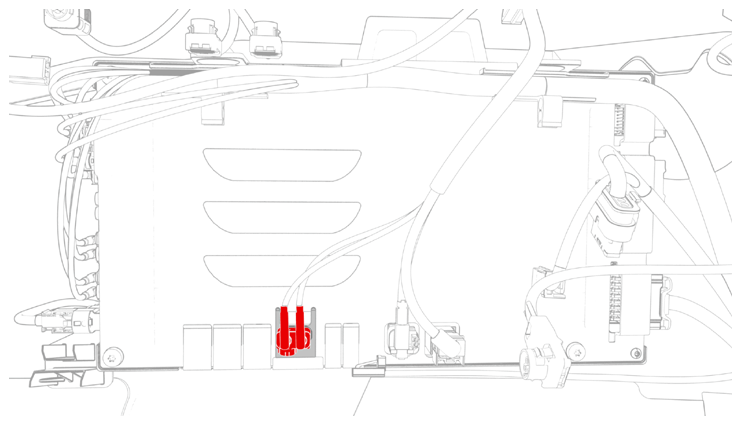

  3. Disconnect the electrical connector from the connectivity board.
    G14748291Courtesy of TESLA, INC.

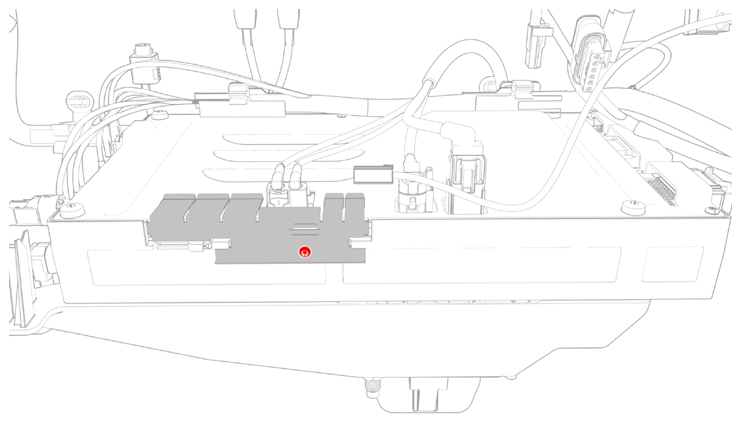

  4. Remove the bolt that attaches the connectivity board to the car computer.
    G14748292Courtesy of TESLA, INC.

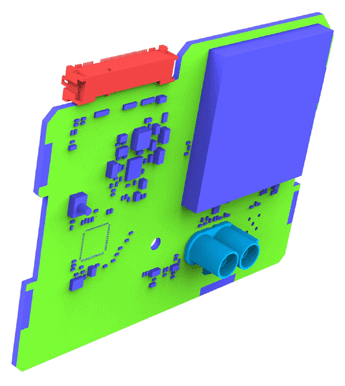

  5. Carefully slide the connectivity board downwards, and then remove the board from the car computer.
    CAUTION: Do not pull on the double Fakra electrical connector. Push on the outer tabs to release the board from the car computer.
    G14748293Courtesy of TESLA, INC.
