Wiper Motor Assembly - Remove And Replace: Removal

  1. Ensure that the wipers are in the off position by rotating the end of the left-hand steering column lever toward you.
  2. Open the hood to the service position.
  3. Remove the cowl screen panel Panel - Cowl Screen (Remove And Replace) .
  4. Remove the LH shock tower brace (RH shock tower brace for RHD vehicles) Shock Tower Brace - LH (Remove And Replace) .

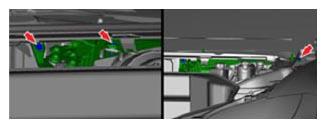

  5. Remove the bolts (x3) that secure the wiper motor assembly to the bulkhead (torque 6 N.m).
    G15035195Courtesy of TESLA, INC.
  6. Carefully release the wiper motor assembly and turn it to access the harness connector.
  7. Disconnect the harness connector from the wiper motor assembly.
  8. Remove the wiper motor assembly.
    CAUTION: Do not damage the harness that is connected to the wiper motor assembly.

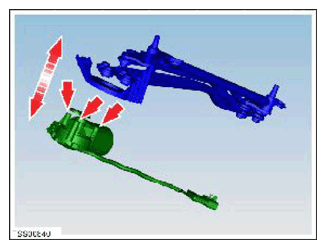

  9. If needed, remove the screws (x3) that secure the wiper motor to the mounting bracket (torque 10 N.m).
  10. Remove the wiper motor.
    G15035196Courtesy of TESLA, INC.
