Casing - Key Fob - Remove And Replace: Removal

  1. Remove the transmitter battery.
  2. Release the side panel:
    • If using a flat screwdriver: Hold the transmitter in one hand. Place the blade of a flat screwdriver or similar object on the edge of the side panel, and then press away from the transmitter to release the side panel. Repeat this step on the other side.
    G15035177Courtesy of TESLA, INC.

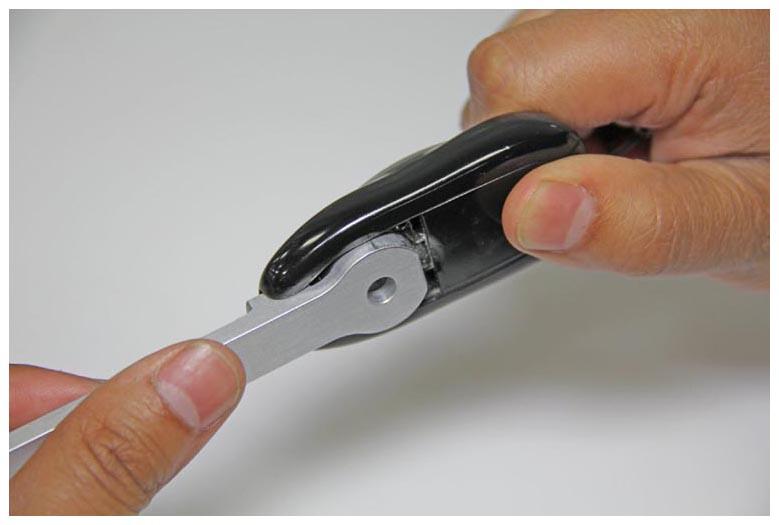

    • If using the special tool: Put the rounded side of the tool inside the battery compartment. Turn the tool to the left and to the right to remove the side panel.
    G15035178Courtesy of TESLA, INC.

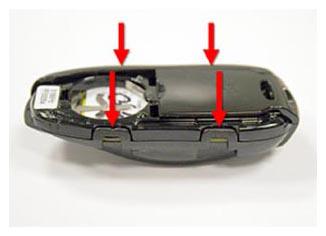

  3. Release the 4 clips, then remove the bottom panel.
    G15035179Courtesy of TESLA, INC.
  4. Remove and retain the circuit board.
    CAUTION: Take care not to damage component(s).
  5. Discard the other components.
