Harness - Front End Module (2nd Generation) - Remove and Replace: Removal

NOTE: This procedure is for vehicles built after April 24, 2019.
  1. Remove the front fascia assembly. See Fascia Assembly - Front (Remove and Install) .

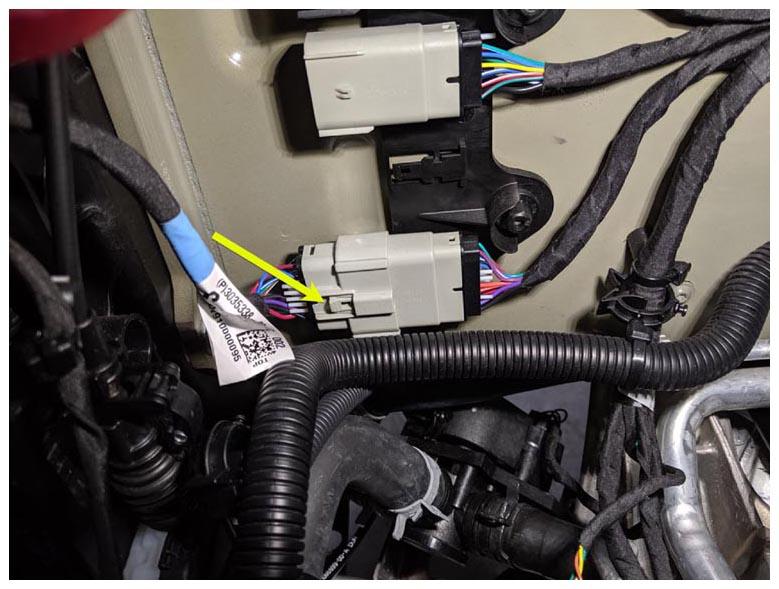

  2. Disconnect the RH front crash rail electrical connector.
    G15033203Courtesy of TESLA, INC.

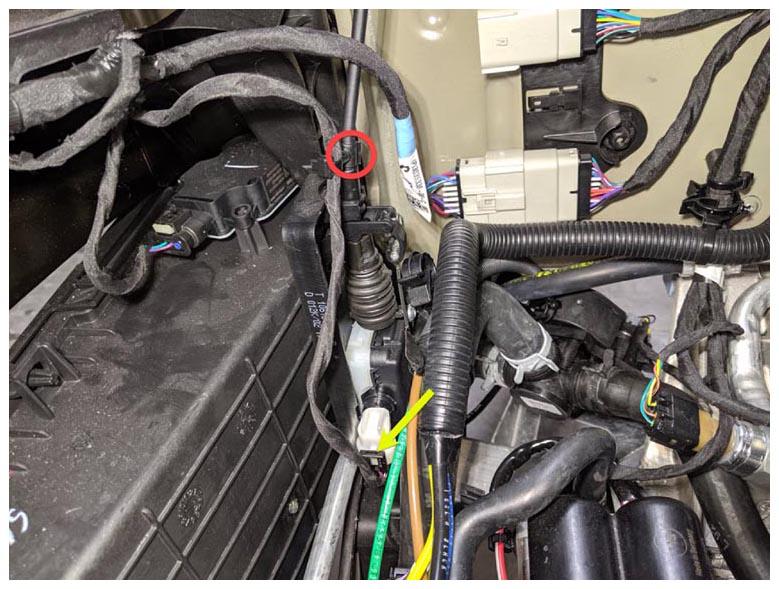

  3. Release the edge clip using a clip prytool, and then disconnect the RH side hood actuator electrical connector.
    G15033204Courtesy of TESLA, INC.

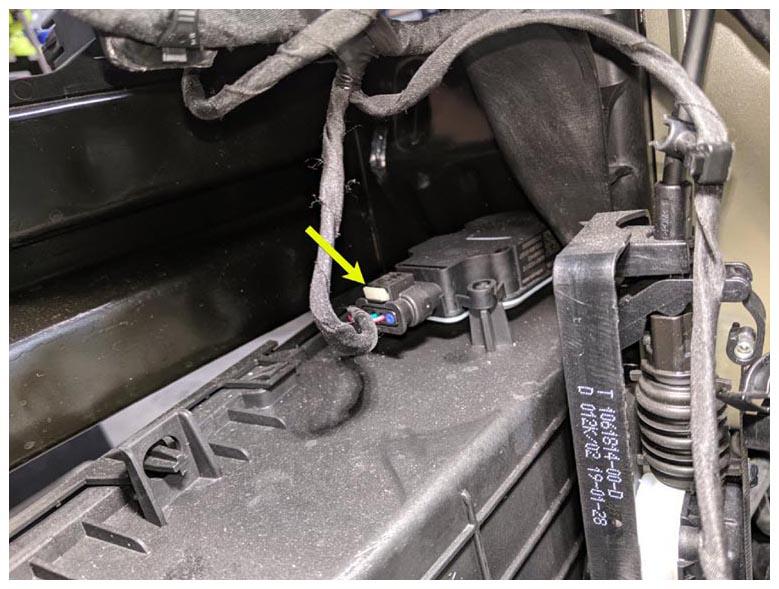

  4. Disconnect the RH radiator actuator electrical connector using a small flat head screwdriver.
    G15033205Courtesy of TESLA, INC.

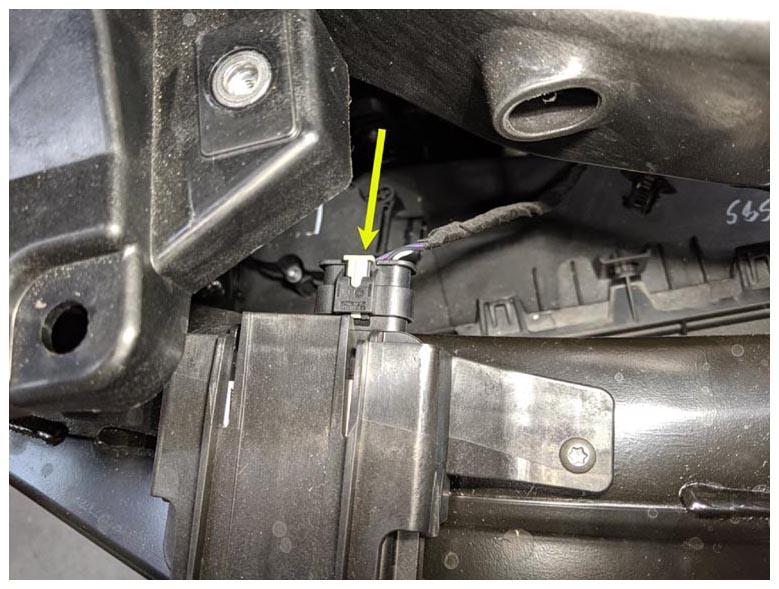

  5. Disconnect the homelink module electrical connector with a small flat head screwdriver.
    G15033206Courtesy of TESLA, INC.

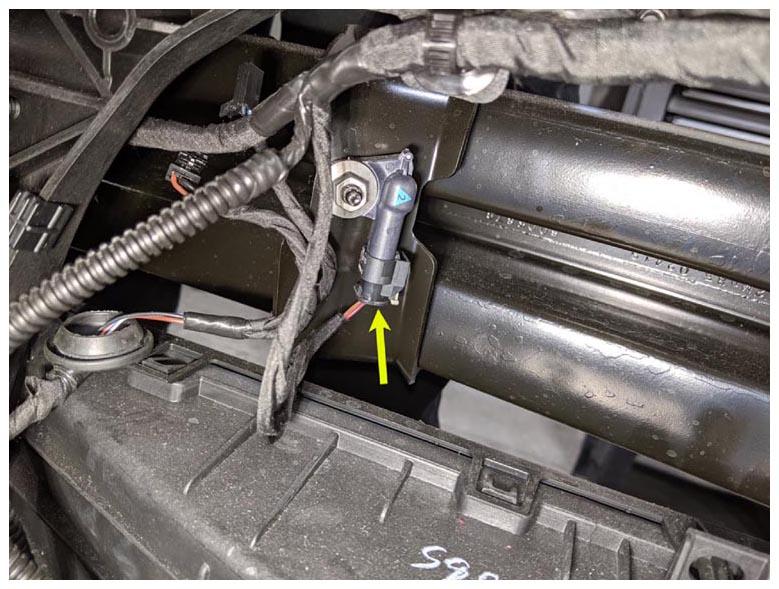

  6. Disconnect the LH accelerator sensor electrical connector using a small flat head screwdriver. Repeat this step for the RH accelerator sensor.

    LH accelerator sensor

    G15033207Courtesy of TESLA, INC.

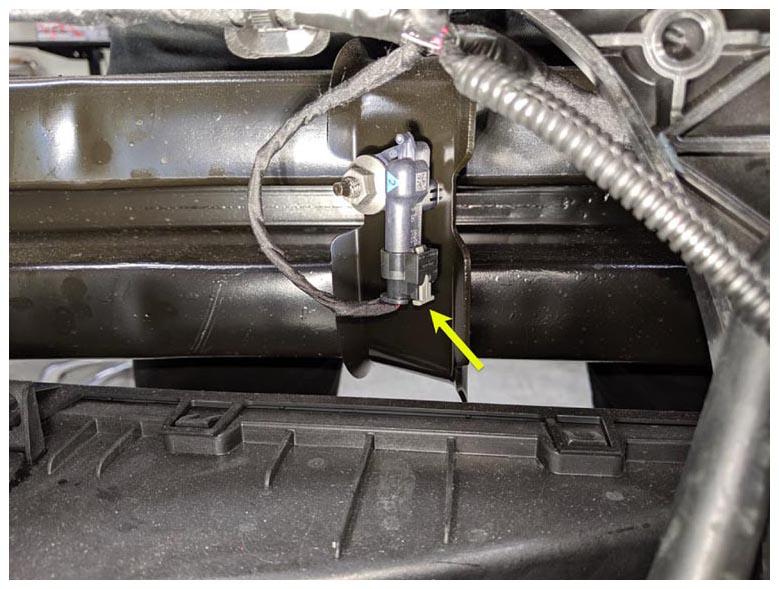

    RH accelerator sensor

    G15033208Courtesy of TESLA, INC.

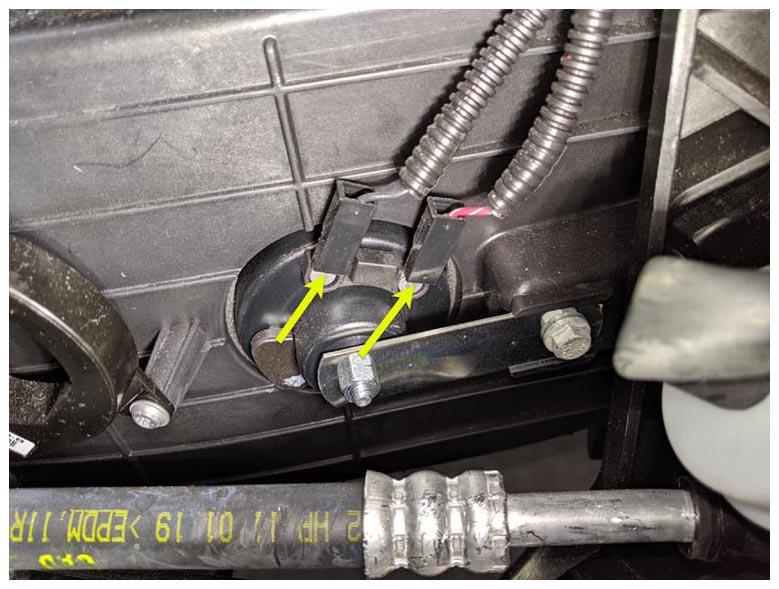

  7. Disconnect the LH horn electrical connectors. Repeat this step for the RH horn.

    LH Horn

    G15033209Courtesy of TESLA, INC.

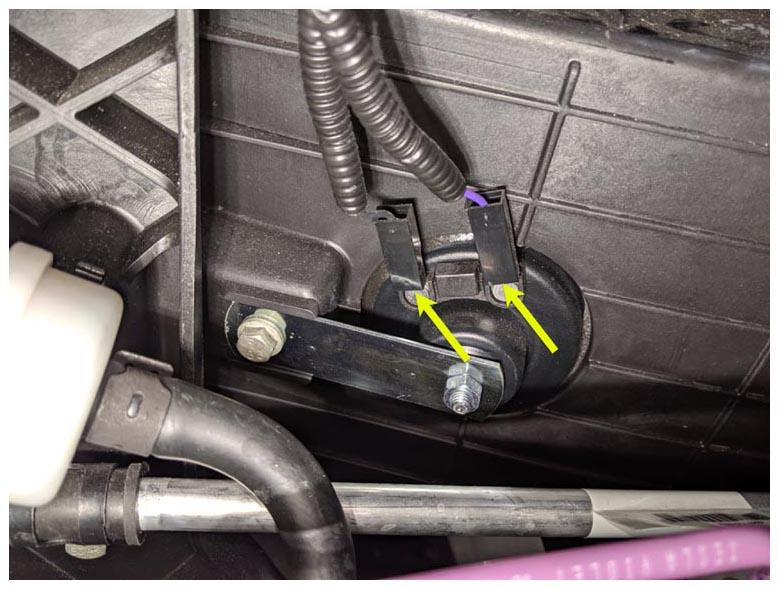

    RH horn

    G15033210Courtesy of TESLA, INC.

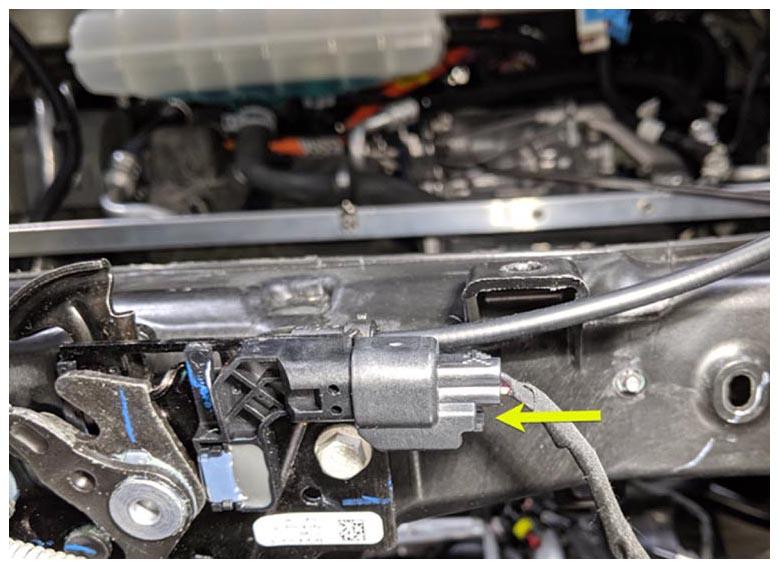

  8. Disconnect the hood latch switch electrical connector.
    G15033211Courtesy of TESLA, INC.

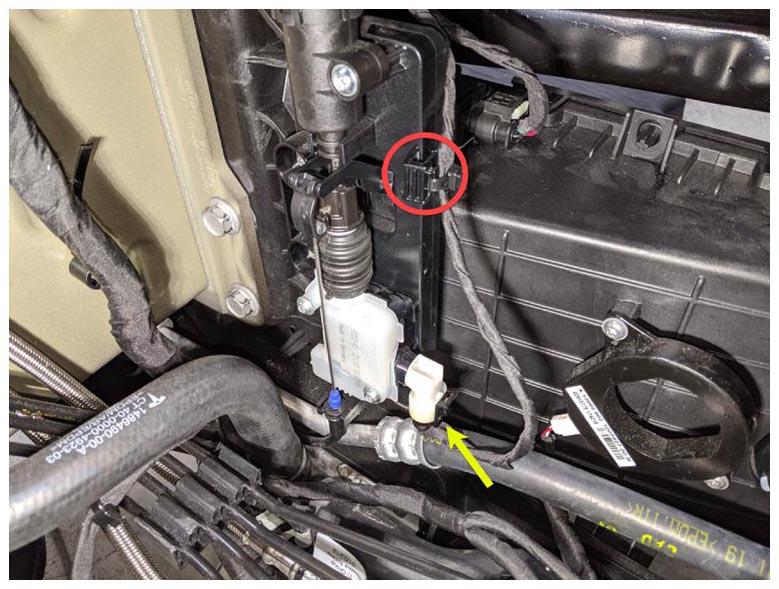

  9. Release the edge clip using a clip prytool, and then disconnect the LH side hood actuator electrical connector.
    G15033212Courtesy of TESLA, INC.

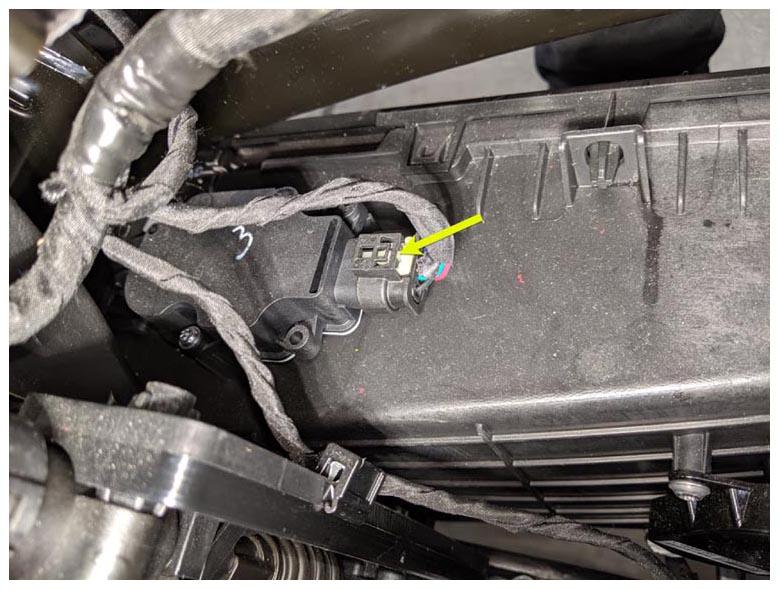

  10. Disconnect the LH radiator actuator electrical connector using a small flat head screwdriver.
    G15033213Courtesy of TESLA, INC.

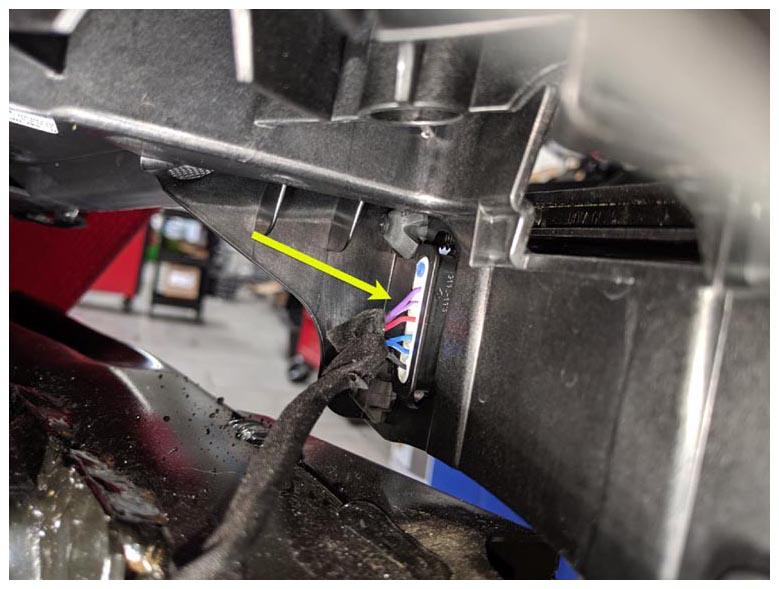

  11. Disconnect the front radar electrical connector using a small flat head screwdriver.
    G15033214Courtesy of TESLA, INC.

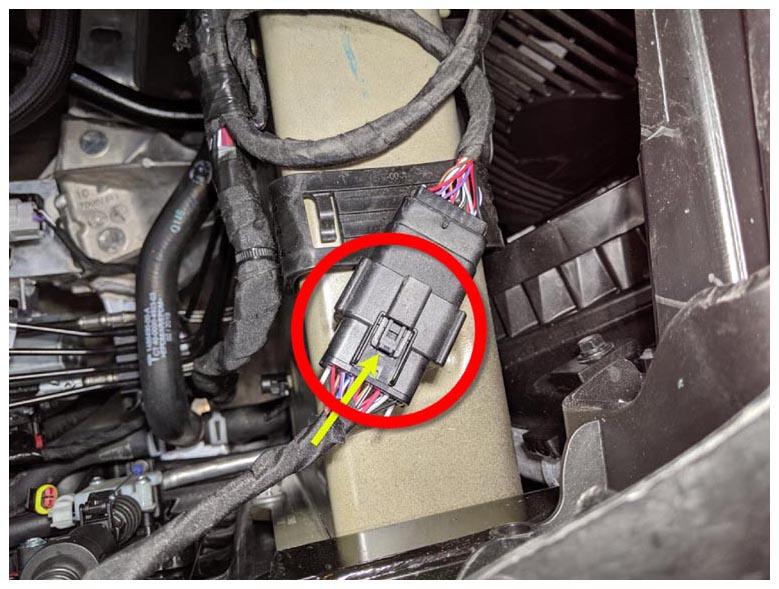

  12. Disconnect the front end module harness electrical connector located on the LH side of the vehicle.
    G15033215Courtesy of TESLA, INC.

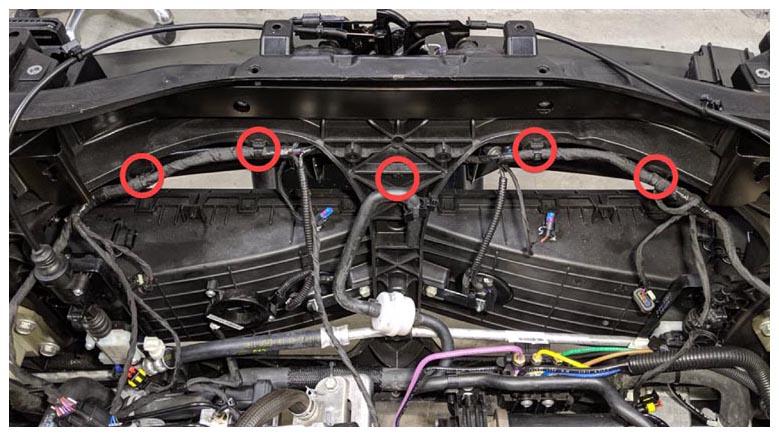

  13. Release the clips (x5) that attach the harness to the front end module.
    G15033216Courtesy of TESLA, INC.

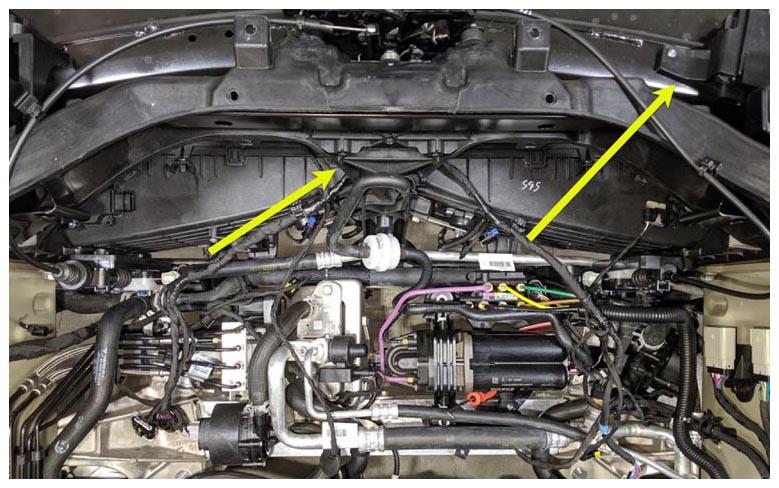

  14. Feed the harness between the front end module assembly and the front bumper beam, and then remove the harness from the vehicle.
    G15033217Courtesy of TESLA, INC.
