Camera - Forward Facing (Pitch Verification): Setup

  1. If the vehicle is equipped with air suspension, set the ride height to Standard.

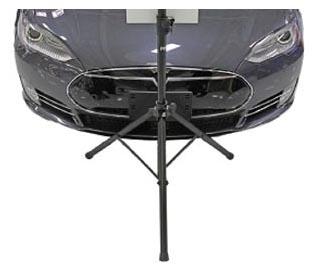

  2. Place the target tripod in the appropriate starting position:
    • The target is centered with the Tesla "T" on the front fascia.
    • The target has two legs facing the vehicle and both are less than 5 mm from the lower valance.
    • The target and vehicle are both on a flat surface.
      NOTE: If a flat surface is unavailable, ensure that the vehicle and target are both on the same slope.
    G15034916Courtesy of TESLA, INC.
  3. Apply a piece of black tape onto the target so that the top edge of the tape is 130 cm from the ground.
    NOTE: The checker pattern on the target is used for vehicles with 1st generation Autopilot. Ignore the checker pattern when affixing the tape.
  4. Set up a local connection:
    • On vehicles equipped with a Tegra based MCU, connect a laptop with Toolbox 2 to the vehicle, and then use Toolbox 3 to set up a local connection.
    • On vehicles equipped with an Intel Atom based MCU, use Toolbox 3 to set up a local connection.
