Gaskets - Antistatic - Autopilot ECU - Install: Install

  1. If not already cut to size, cut the EMI gasket (1656238-00-A or later) into two pieces: one piece 25 mm long and another piece 9 mm long.
  2. Put on the ESD wrist strap.

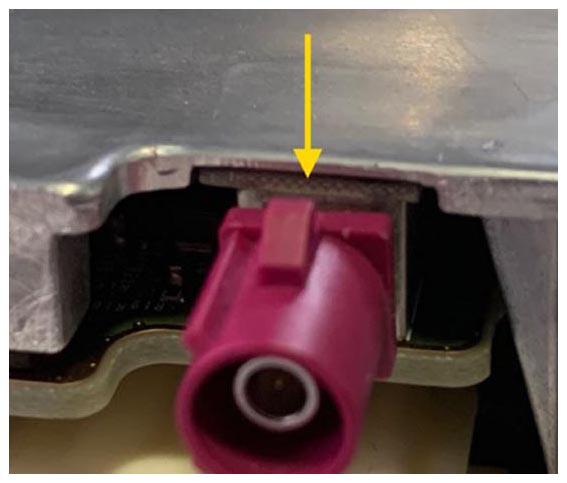

  3. Carefully install the 9 mm EMI gasket on the RH side of the Autopilot ECU, between the purple electrical connector housing and ECU case.
    NOTE: To ensure proper grounding, make sure the gasket makes complete contact with the Autopilot ECU case.

    Tip: Use a pocket screwdriver and/or tweezers to aid in installation.

    G15034695Courtesy of TESLA, INC.

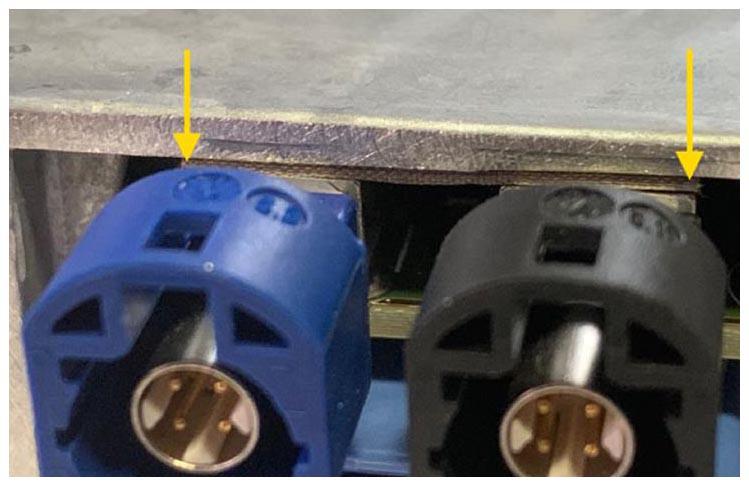

  4. Carefully install the 25 mm EMI gasket on the RH side of the Autopilot ECU, between the blue and black electrical connector housings and ECU case.
    NOTE: To ensure proper grounding, make sure the gasket makes complete contact with the Autopilot ECU case.

    Tip: Use a pocket screwdriver and/or tweezers to aid in installation.

    G15034696Courtesy of TESLA, INC.
  5. Remove the ESD wrist strap.
  6. Without updating firmware or executing any Toolbox routines, install the Autopilot ECU. See MODULE - AUTOPILOT - ECU - 2ND GENERATION (REMOVE AND REPLACE) .
  7. Install the glove box and RH instrument panel lower assembly. See Glove Box (Remove and Replace) .
  8. Reconnect 12V power. See DISCONNECT 12V POWER .
