Accelerator - Remove And Replace: Removal

  1. Remove the driver's footwell cover assembly. See Assembly - Cover - Footwell - Driver's (Remove and Replace) .
  2. Disconnect the harness connector from the top of the accelerator pedal assembly.

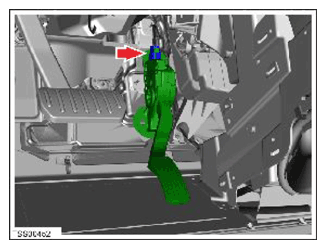

    G15035223Courtesy of TESLA, INC.
  3. Remove the nuts (x2) that secure the accelerator pedal assembly to the mounting bracket (torque 9 N.m).

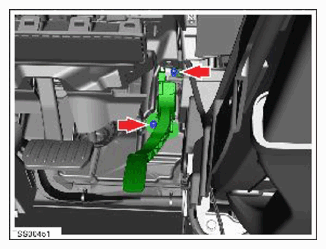

    G15035224Courtesy of TESLA, INC.
  4. Release the accelerator pedal assembly from the mounting bracket.
  5. Remove the accelerator pedal assembly from the vehicle.
