E-Fuse Module (1st Generation) - Remove And Replace: Removal

This procedure is for vehicles built through April 24, 2019. For vehicles built after April 24, 2019, see E-FUSE MODULE (2ND GENERATION) (REMOVE AND REPLACE) .

1. Disconnect 12V power. See DISCONNECT 12V POWER .
2. Remove the HEPA filter outlet. See Duct - HEPA Filter - Outlet (Remove and Replace) .
3. Remove the underhood fusebox. See FUSEBOX - UNDERHOOD - 2ND GENERATION (REMOVE AND REPLACE) .
4. Remove the clips (x4) that attach LH shock tower cover, and then remove the cover.
5. Remove the clips (x4) that attach RH shock tower cover, and then remove the cover.

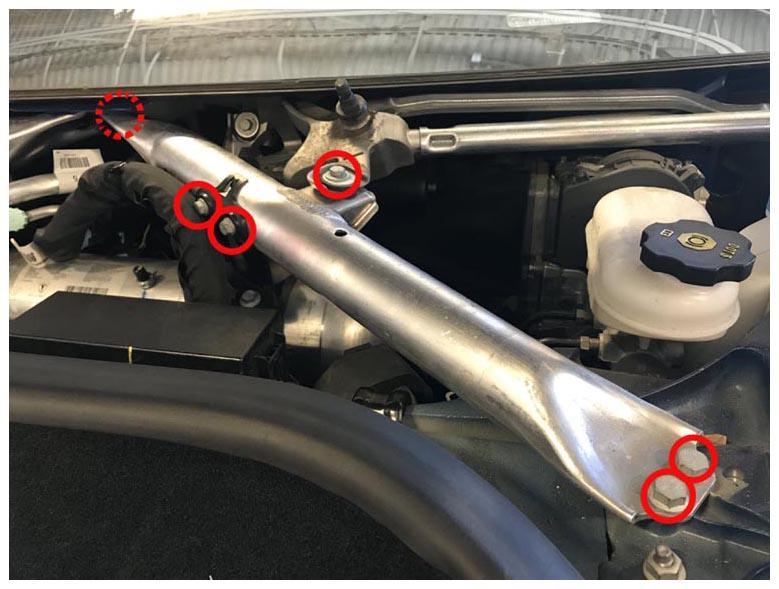

6. Remove the bolts (x6) and the clip that attach the LH shock tower brace to the body, and then remove the brace from the vehicle.

   Courtesy of TESLA, INC.

7. Remove the bolts (x8) and the clip that attach the RH shock tower brace to the body, and then remove the brace from the vehicle.

   Courtesy of TESLA, INC.

8. Remove the wiper motor assembly. See Wiper Motor Assembly (Remove and Replace) .
9. Remove the screws (x2) that attach the air suspension reservoir brackets to the body.
10. Move the air suspension reservoir aside for access.

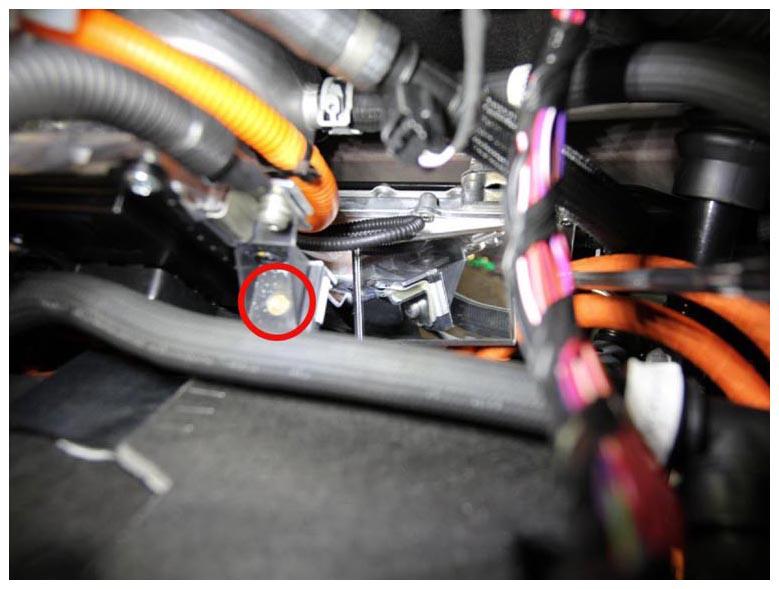

11. Remove the nut that attaches the E-fuse module to the battery coolant heater bracket.

    Courtesy of TESLA, INC.

    NOTE: The nut is removed in this figure.

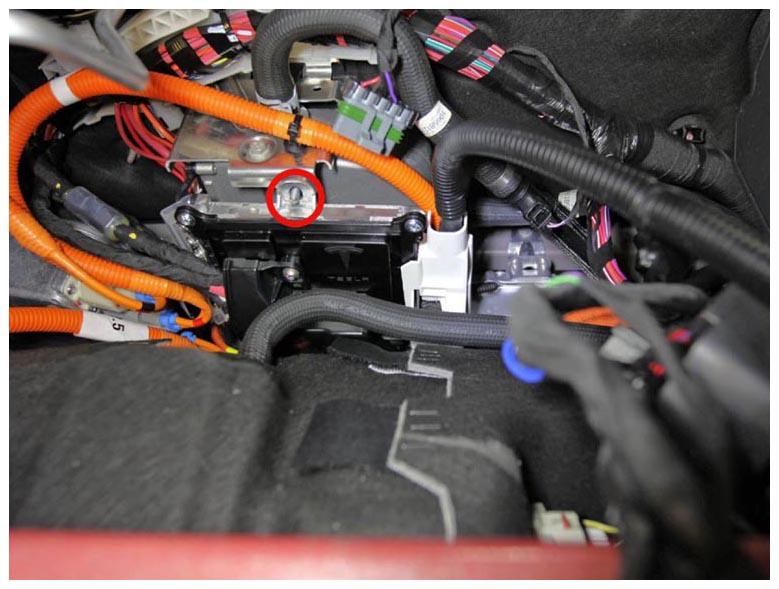

12. Remove the bolt that attaches the DCDC cover to the E-fuse module, and then remove the cover.

    Courtesy of TESLA, INC.

13. Remove and discard the bolt that attaches DCDC positive cable to the E-fuse module.

    Courtesy of TESLA, INC.

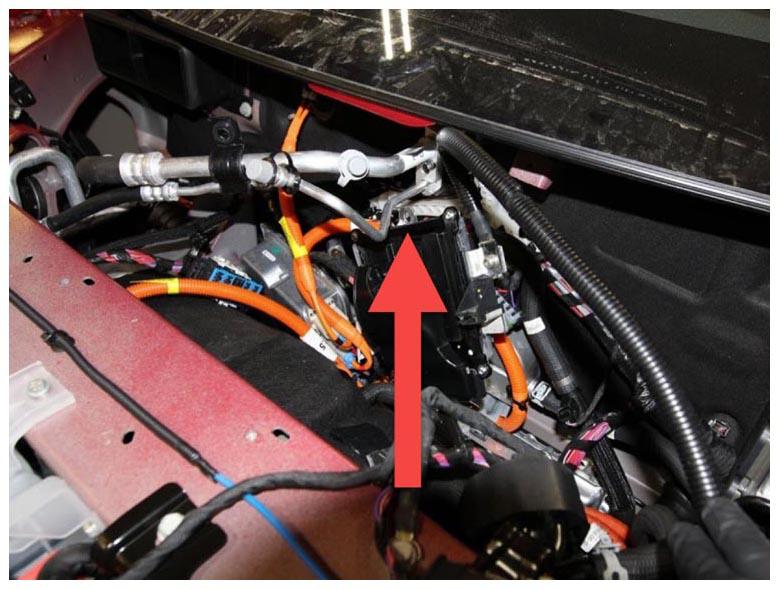

14. Lift the E-fuse module to access the front of the E-fuse module.
    CAUTION: Make sure not to dislodge nearby refrigerant lines.

    Courtesy of TESLA, INC.

    NOTE: The E-fuse module is lifted for access.

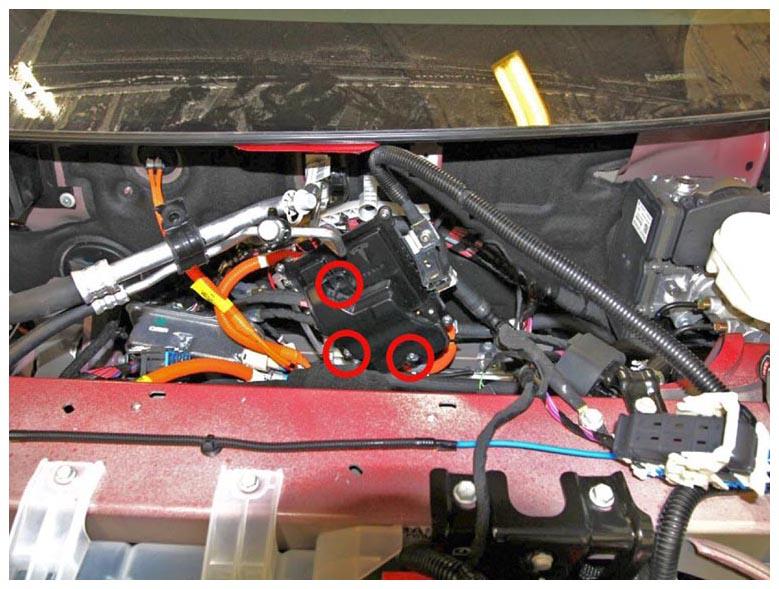

15. Remove the screws (x3) that attach the cover to the E-fuse module, and then remove the cover.

    Tip: The screws are not identical. Note the location for each screw.

    Courtesy of TESLA, INC.

16. Release the tabs (x2), and then remove the side cover from the RH side of the E-fuse module.

    Courtesy of TESLA, INC.

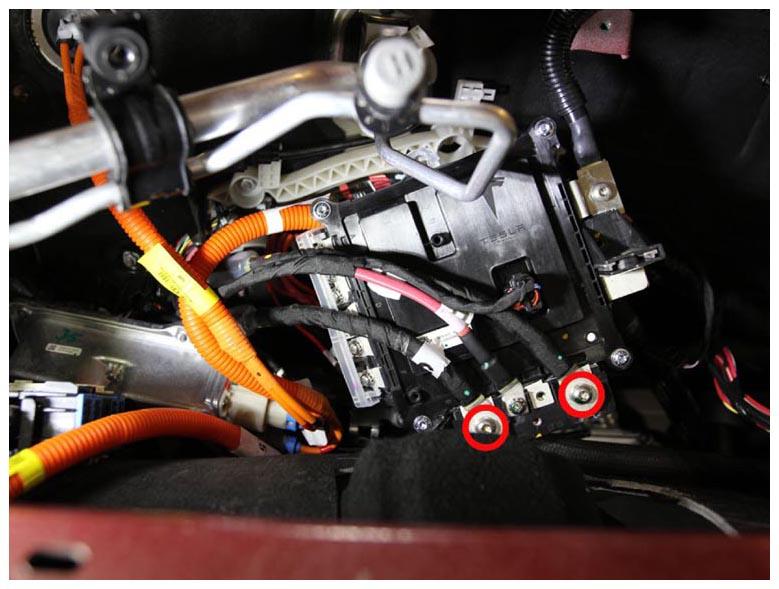

17. Remove and discard the bolts (x2) that attach the large cables to the bottom of the E-fuse module.

    Tip: Note the location of the labeled wires during removal.

    Courtesy of TESLA, INC.

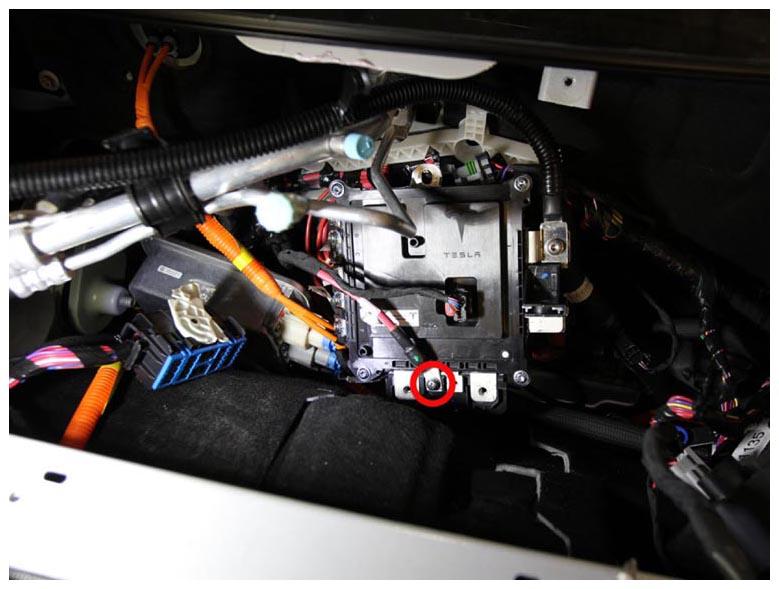

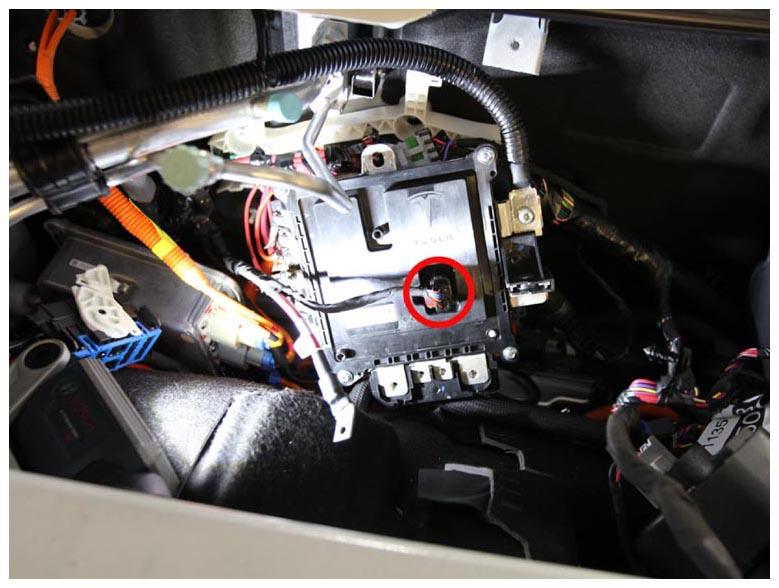

18. Remove the screw that attaches the small cable to the bottom of the E-fuse module.

    Tip: Note the location of the labeled wires during removal.

    Courtesy of TESLA, INC.

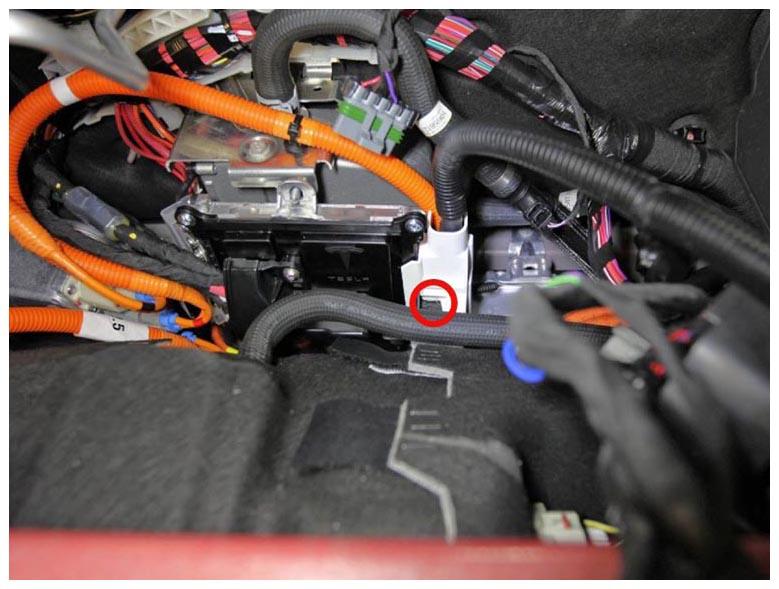

19. Release the locking tab, and then disconnect the signal harness from the E-fuse module connector.

    Courtesy of TESLA, INC.

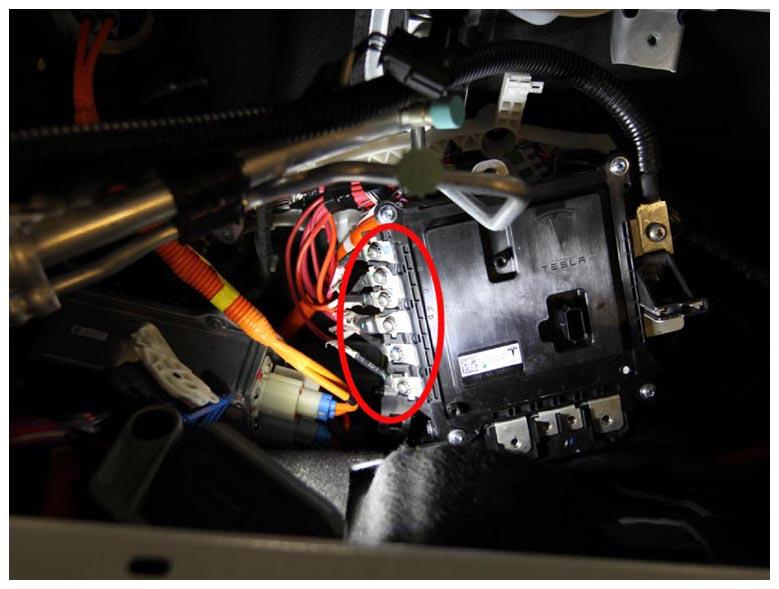

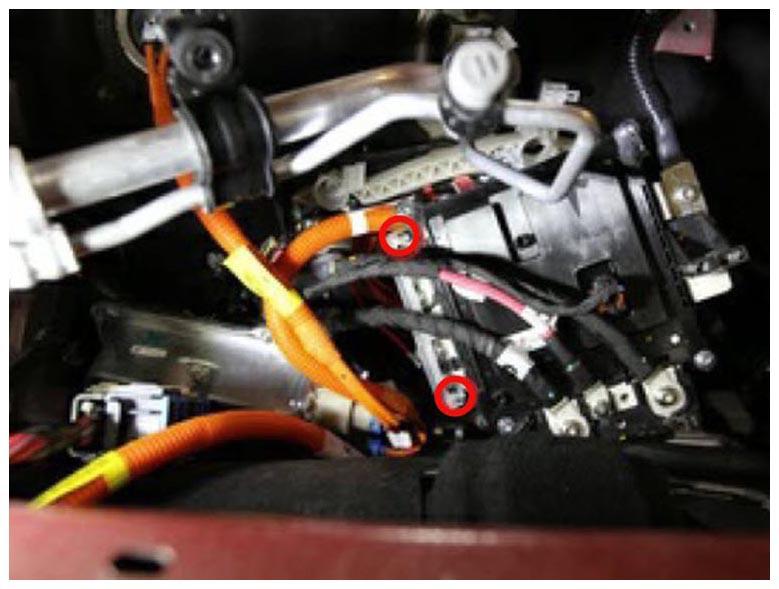

20. Remove the screws (x6) that attach the small cables to the side of the E-fuse module.

    Tip: Note the location of the labeled wires during removal.

    Courtesy of TESLA, INC.

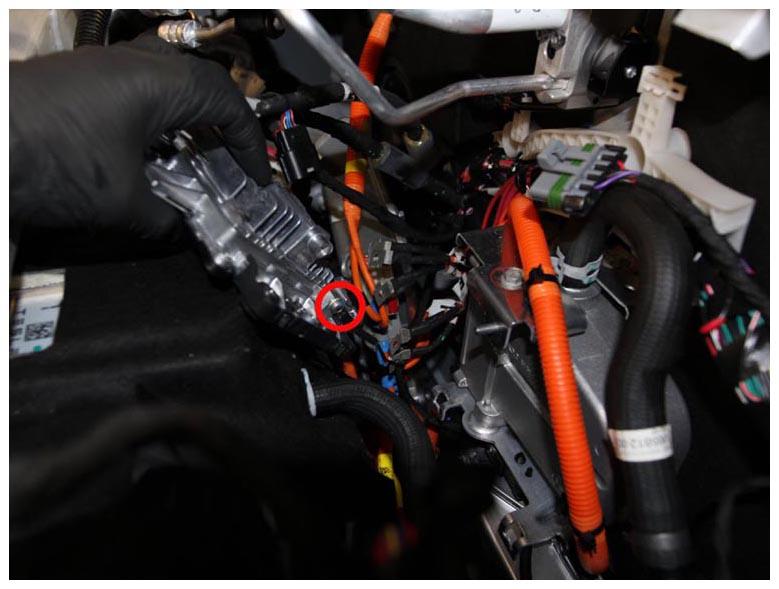

21. Remove and discard the bolt that attaches the ground cable to the E-fuse module.

    Courtesy of TESLA, INC.

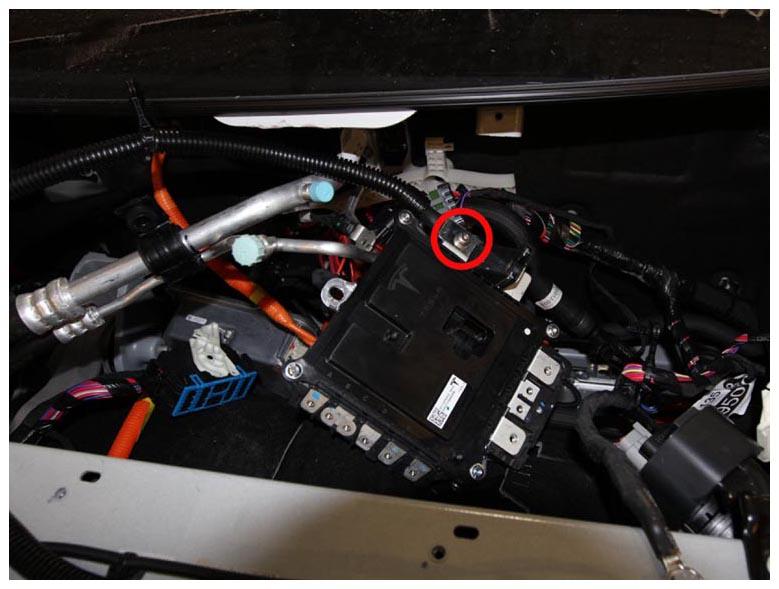

22. Remove and discard the bolt that attaches the 12V power supply cable to the E-fuse module, and then remove the E-fuse module from the vehicle.

    Courtesy of TESLA, INC.
