Tie Rod End - LH - Remove And Replace: Removal

  1. Remove the road wheel Wheel (Remove And Install) .
  2. Loosen the tie rod end jam nut (torque 70 N.m).
    CAUTION: To prevent tie rod damage, always restrain the tie rod with a wrench when loosening or tightening the jam nut.
  3. Restrain the tie rod ball-pin with a wrench and remove and discard the nut that secures the tie rod end to the steering arm (torque 103.5 N.m).
    CAUTION: To prevent ball joint damage, always hold the ball joint pin with a wrench while loosening or tightening the lock nut.

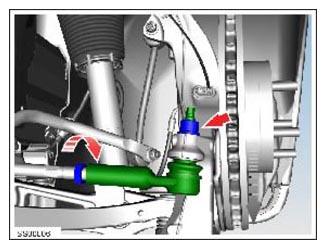

    G14981510Courtesy of TESLA, INC.
  4. Release the tie rod end from the knuckle.
  5. Noting the number of turns required, unscrew the tie rod end.
