Connector End View - X085 [7/11/2014 - 10/28/2014]

Location:

Fig 1: Connector Component Location - X085 [7/11/2014 - 10/28/2014]
G15028294Courtesy of TESLA, INC.

Connector Detail: molex_33472-0401

Gender:

Color: BK

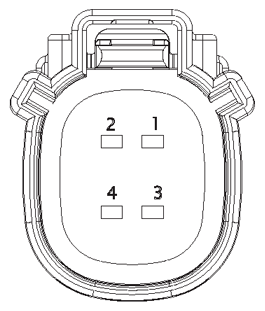

Fig 2: Connector End View - X085 [7/11/2014 - 10/28/2014]
G15028295Courtesy of TESLA, INC.
Cav Col Gauge
1 WH/BN 0.35
2 WH/RD 0.5
3 RD 0.5
4 BK 0.35
