Connector End View - X738 [5/31/2013 - 1/6/2014]

Location:

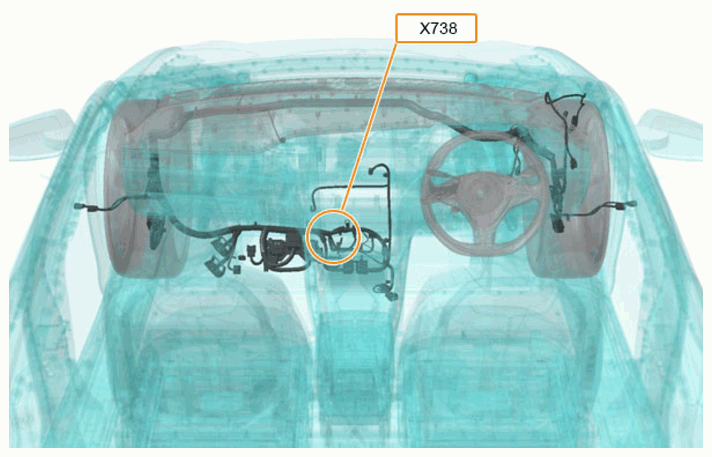

Fig 1: Connector Component Location - X738 [5/31/2013 - 1/6/2014]
G15027831Courtesy of TESLA, INC.

Connector Detail: yazaki_7183-3190

Gender:

Color: White

Fig 2: Connector End View - X738 [5/31/2013 - 1/6/2014]
G15027832Courtesy of TESLA, INC.
Cav Col Gauge
1 VT 0.5
2 VT 0.5
3 VT 0.5
4 VT 0.5
