Bushing - Drive Unit - Rear - Large - Remove And Replace: Notes
Last modified: 17/08/2023 07:20:48
Revision History:
- 2023-08-17: Added "Large" to the procedure title.
WARNING:
To avoid personal injury, eye protection must be worn when performing this operation.
WARNING:
To avoid personal injury, safety-toe shoes and cut-resistant gloves are recommended when performing this operation.

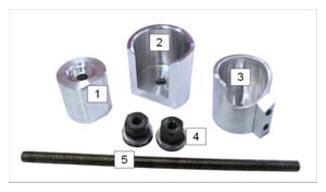

The drive unit bushing tool (PN 1047033-00-B) set includes the following parts:
| 1 | Driver |
| 2 | Front bushing cup |
| 3 | Rear bushing cup |
| 4 | Nut bearing assemblies |
| 5 | Threaded rod |
