USB Hub - Center Console - Front (2nd Generation) - Remove and Replace: Remove

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Tesla Model 3, 2022 Tesla Model 3, 2021 Tesla Model 3, 2020 Tesla Model 3, and 2019 Tesla Model 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the sliding bin lid of the center console.

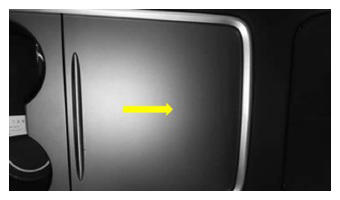

    G14748496Courtesy of TESLA, INC.
  2. Release the clips (x2) through the slots with a pick, and then release the rest of the clips (x3) that attach the bottom of the USB hub to the center console.

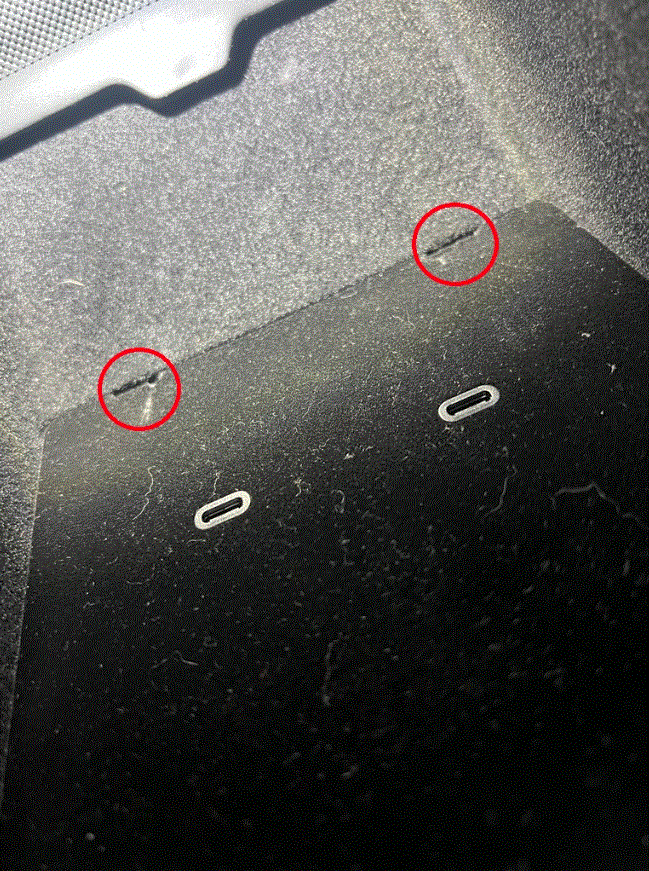

    G00649489Courtesy of TESLA, INC.

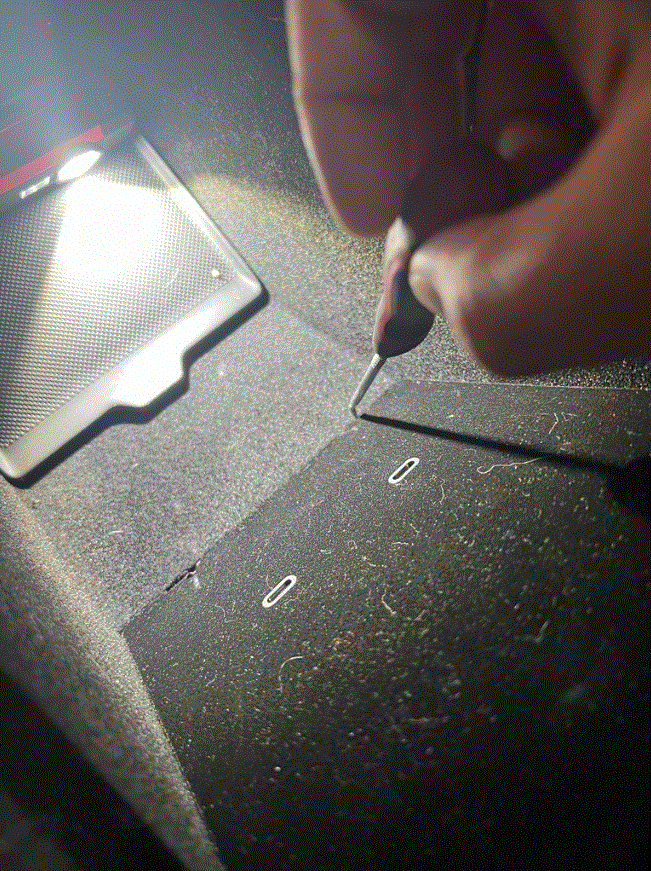

    G00649490Courtesy of TESLA, INC.

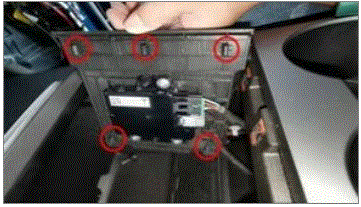

    G00649491Courtesy of TESLA, INC.
  3. Disconnect the electrical harness from the USB hub connectors (x2), and then remove the USB panel from the center console.

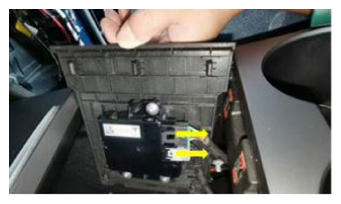

    G14748499Courtesy of TESLA, INC.

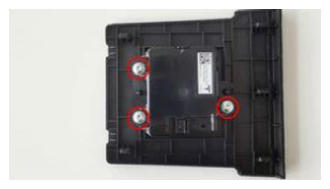

  4. Remove the screws (x3) that attach the USB hub to the USB panel, and then remove the hub from the panel.
    G14748500Courtesy of TESLA, INC.

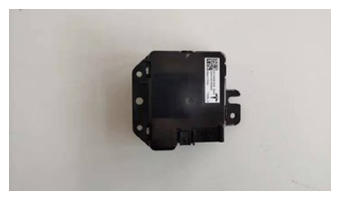

    G14748501Courtesy of TESLA, INC.
