Subwoofer - Remove and Replace: Remove

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Tesla Model 3, 2022 Tesla Model 3, 2021 Tesla Model 3, 2020 Tesla Model 3, and 2019 Tesla Model 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect 12V power. See 12V/LV POWER (DISCONNECT AND CONNECT) .
  2. Remove the RH trunk side trim. See TRIM - SIDE - TRUNK - RH (REMOVE AND REPLACE) .
  3. Disconnect the electrical harness from the amplifier connectors.
    CAUTION: Make sure 12V power is disconnected before disconnecting the electrical connectors. Failure to disconnect 12V power before removal can result in damage.
    G14748476Courtesy of TESLA, INC.

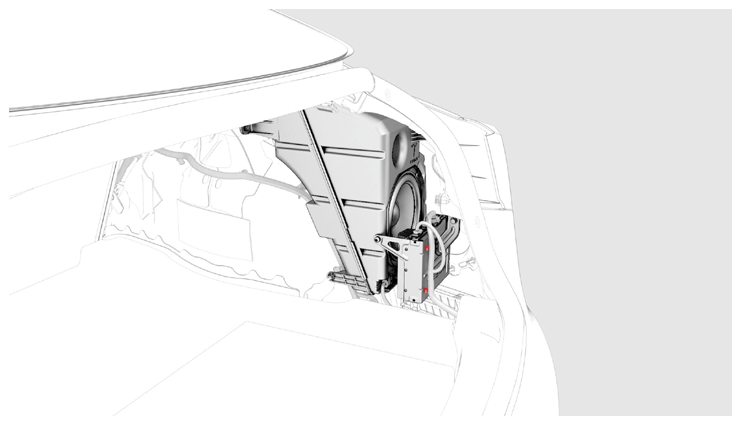

  4. Release the clips that attach the electrical harness to the subwoofer.
    G14748477Courtesy of TESLA, INC.

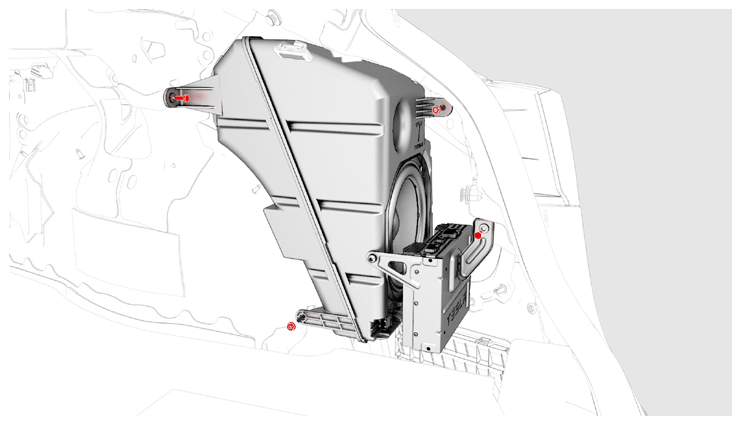

  5. Remove the bolts and nuts that attach the subwoofer to the body, and then remove the subwoofer from the vehicle.

    4.5 N.m (3.3 ft-lbs)

    4.5 N.m (3.3 ft-lbs)

    G14748478Courtesy of TESLA, INC.
