Connector End View - X063 [5/31/2013 - 1/6/2014]

Location:

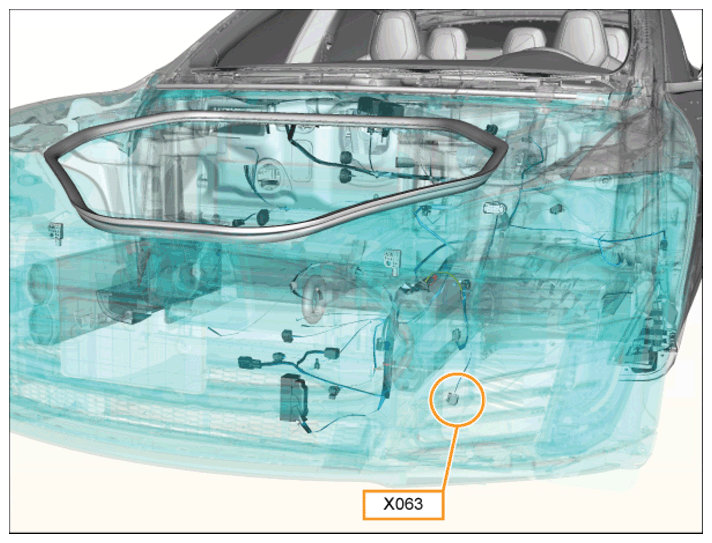

Fig 1: Connector Component Location - X063 [5/31/2013 - 1/6/2014]
G15027262Courtesy of TESLA, INC.

Connector Detail: amp_1-967640-1

Gender:

Color: BK

Fig 2: Connector End View - X063 [5/31/2013 - 1/6/2014]
G15027263Courtesy of TESLA, INC.
Cav Col Gauge
1 WH/BK 0.35
2 WH/VT 0.35
3 WH/OG 0.35
4 RD/WH 0.35
