LF Antenna - RH - A Post - Remove And Replace: Removal

  1. Raise and support the vehicle Raise Vehicle - 2 Post Lift
  2. Remove RH front wheel arch liner for access Louver - Wheel Arch Liner - Front - LH (Remove And Replace)
  3. Locate LF antenna and disconnect harness connector.

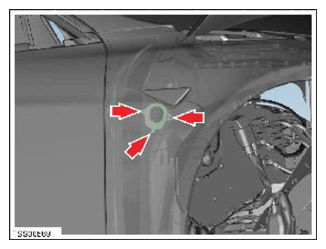

  4. Remove screws (x2) securing LF antenna to body (torque 8 N.m).
    G15035184Courtesy of TESLA, INC.

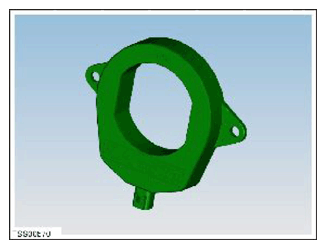

  5. Remove LF antenna from vehicle.
    G15035185Courtesy of TESLA, INC.
