Halogen Bulb - Headlight - LH - Remove And Replace: Removal

  1. If the vehicle has air suspension, set ride height to Jack mode: Controls  > Suspension  > Jack
  2. Remove the LH underhood apron Underhood Apron - LH (Remove And Replace) .

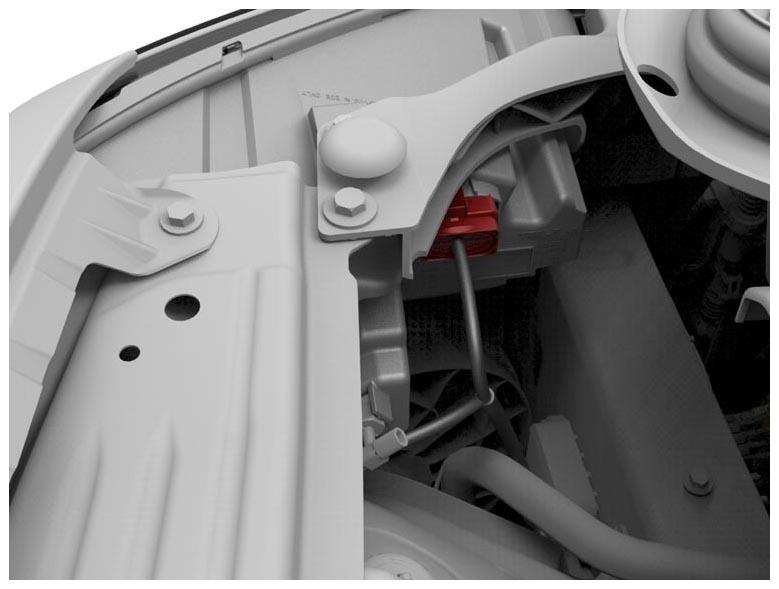

  3. Disconnect the LH headlight connector.
    G15035095Courtesy of TESLA, INC.
  4. Remove the LH front wheel Wheel (Remove And Install) .
  5. Remove the LH front louver assembly Louver - Wheel Arch Liner - Front - LH (Remove And Replace) .
  6. Remove the headlight cover.
    G15035096Courtesy of TESLA, INC.
  7. Release the halogen bulb lock collar by rotating counterclockwise.
    G00653809Courtesy of TESLA, INC.
  8. Remove the halogen bulb from the headlight housing.
    G00653810Courtesy of TESLA, INC.
  9. Carefully separate the connector from the base of the halogen bulb.
    G00653811Courtesy of TESLA, INC.
