Tire Rotation: Procedure

WARNING: This page is about a different car, the 2024 Tesla Model Y, 2023 Tesla Model Y, 2022 Tesla Model Y, 2021 Tesla Model Y, and 2020 Tesla Model Y. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove all 4 wheels. See WHEEL (REMOVE AND INSTALL) .
  2. Check if the tires are offset or directional.

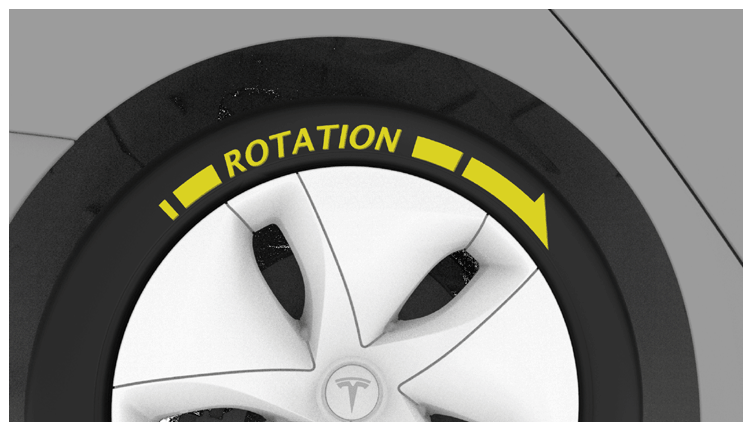

    NOTE: Directional tires are identified with an arrow indicating the direction of rotation on the sidewall.
    G14843451Courtesy of TESLA, INC.
  3. Reinstall the wheels according to the type of tires.
    G14843452Courtesy of TESLA, INC.

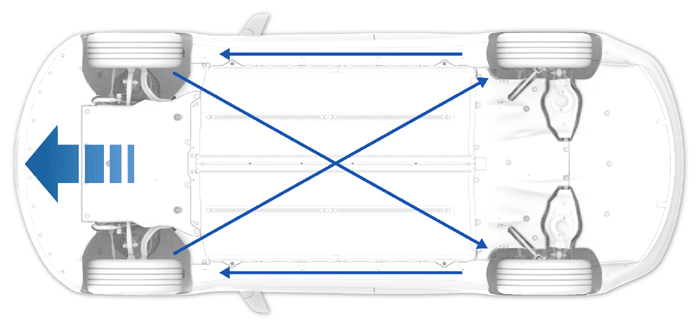

    Move front tires to opposite side in rear. Move rear tires only to front.

    NOTE: Mobile Service technicians, factory tires may be rotated as indicated in "Non-Directional Tires, Front and Rear Different Size".

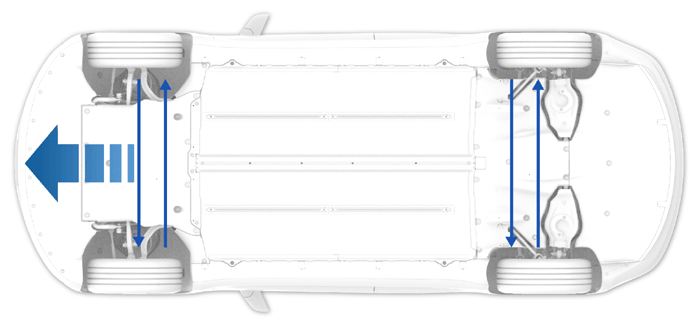

    Non-Direction Tires, All Tires Sam Size

    G14843453Courtesy of TESLA, INC.

    Move LH to RH. Do not move front to rear.

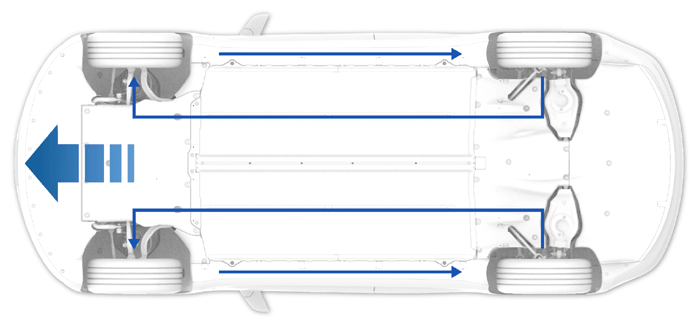

    Non-Directional Tires, Front and Rear Difference Size

    G14843454Courtesy of TESLA, INC.

    Move front tires to rear. Do not move from LH to RH.

  4. Install all 4 wheels. See WHEEL (REMOVE AND INSTALL) .
  5. Reset the tire estimates using one of the following methods.
    • On the touchscreen, touch Controls > Service > Chassis > Alignment & Tires > Reset Learned Tire Values and then follow the on-screen instructions.
    • Use Toolbox 3:
      • Connect a laptop with Toolbox 3 to the vehicle.
      • In Toolbox, click the Actions  tab, and then search for "Reset Tire Estimates".
      • Click PROC_DIR_CLEAR-LEARNT-TIRE-OFFSET  , and then click Run  and allow the routine to complete.
      • Disconnect Toolbox and remove the laptop from the vehicle.
