Accessory Drive Belt Removal and Installation: Installation

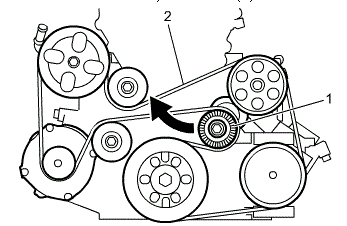

- Loosen belt tension by turning tensioner (1) clockwise.
- While keeping tensioner in the loose position install accessory drive belt (2).
Courtesy of SUZUKI OF AMERICA CORP.
- Connect negative (-) cable to battery.
