Manual Transaxle Assembly Components

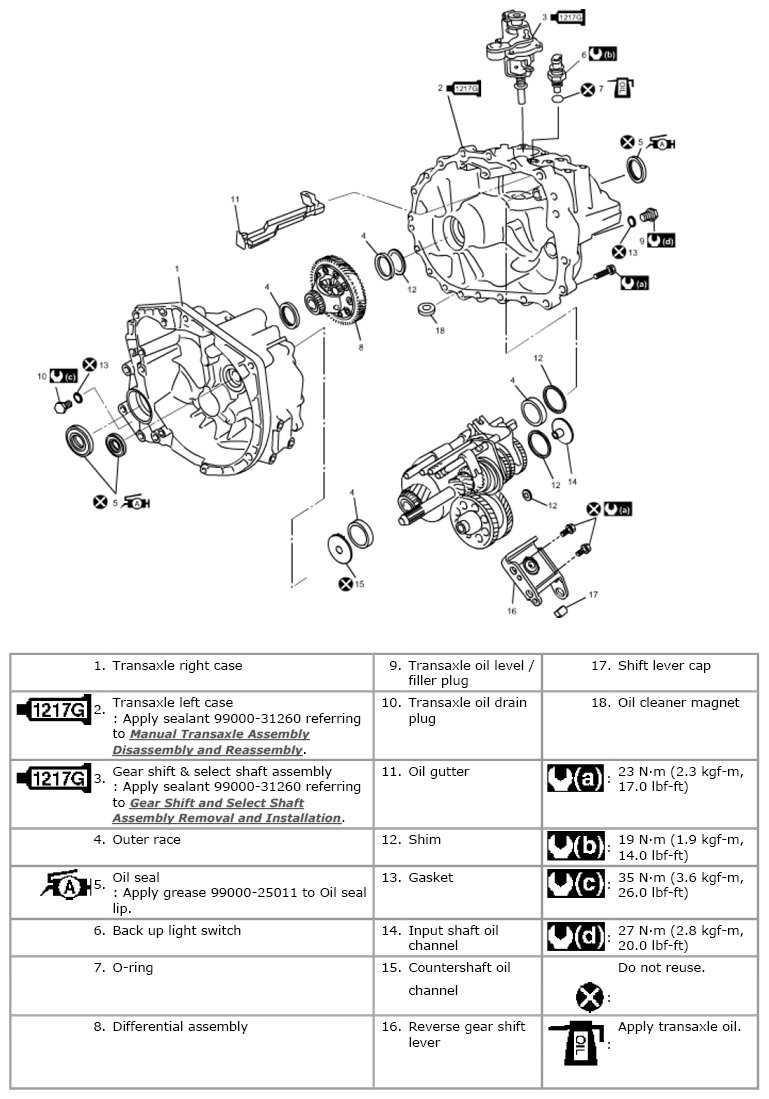

Fig 1: Manual Transaxle Assembly Replacement Components With Torque Specifications

G06528784

Courtesy of SUZUKI OF AMERICA CORP.
