Home >> Suzuki >> 2013 >> Kizashi Base, Standard Trans >> Repair and Diagnosis >> Suspension >> Wheel Alignment >> Rear Suspension >> Repair Instructions >> Trailing Arm Components

Trailing Arm Components

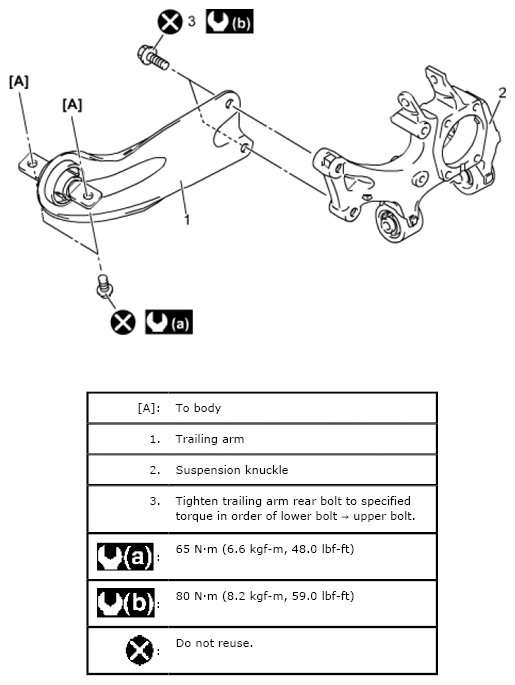

Fig 1: Trailing Arm Replacement Components With Torque Specifications

G06528363

Courtesy of SUZUKI OF AMERICA CORP.
