Control Rod Inspection

Inspect right and left control rod bushings for cracks, deformation or damage. Replace bushing(s) if defective.
Inspect each control rod for cracks, deformation or other damage. Replace control rod if defective.

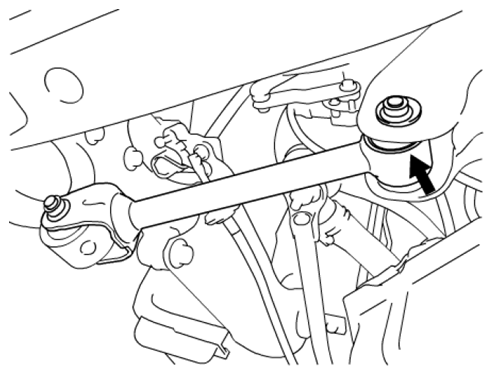

Fig 1: Inspecting Control Rod
Courtesy of SUZUKI OF AMERICA CORP.
