Suzuki
>>
2013
>>
Kizashi Base, Standard Trans
>>
Repair and Diagnosis
>>
Suspension
>>
Wheel Alignment
>>
Rear Suspension
>>
Repair Instructions
>>
Control Rod Components
Control Rod Components

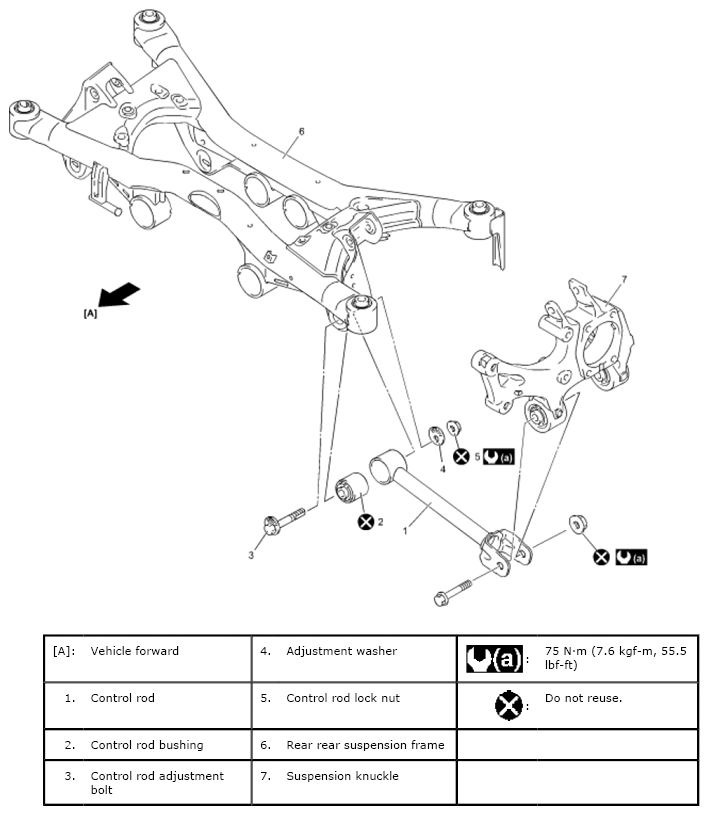

Fig 1: Control Rod Replacement Components With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
