Front Strut Assembly Components

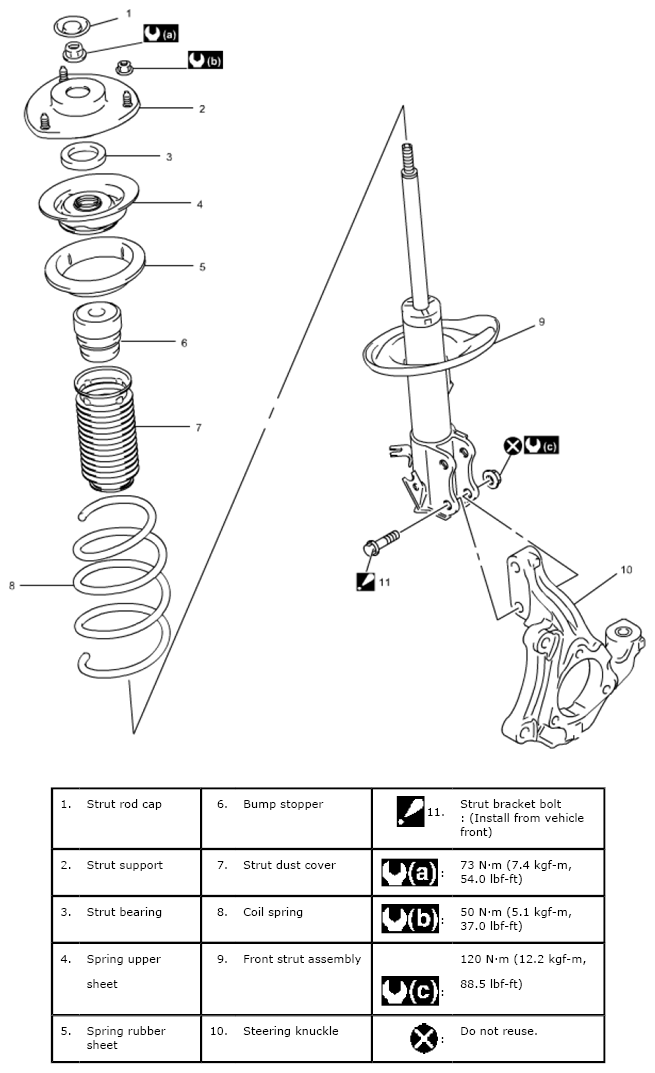

Fig 1: Front Strut Assembly Replacement Components With Torque Specifications

G06529888

Courtesy of SUZUKI OF AMERICA CORP.
