Steering Wheel and Column Components

WARNING: Be sure to remove and install driver air bag (inflator) module according to procedure described in DRIVER AIR BAG (INFLATOR) MODULE REMOVAL AND INSTALLATION .
CAUTION: Perform CENTERING OF CONTACT COIL CABLE ASSEMBLY  , when installing steering wheel.

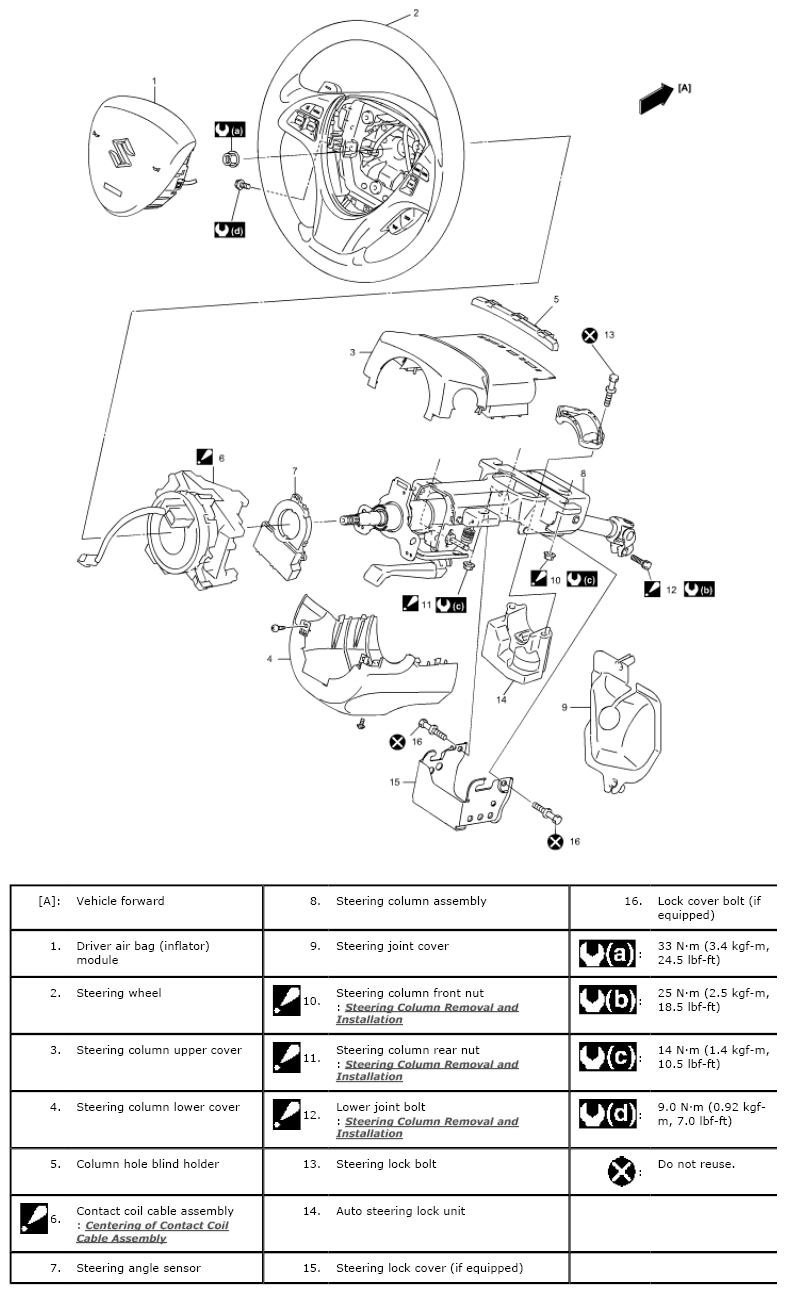

Fig 1: Steering Wheel And Column Replacement Components With Torque Specifications
G06526637Courtesy of SUZUKI OF AMERICA CORP.
